(35.357.AG[01]) - 6-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, SOLENOID

Запчасти Case 580N EP (35.357.AG[01]) - 6-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, SOLENOID (35) - HYDRAULIC SYSTEMS

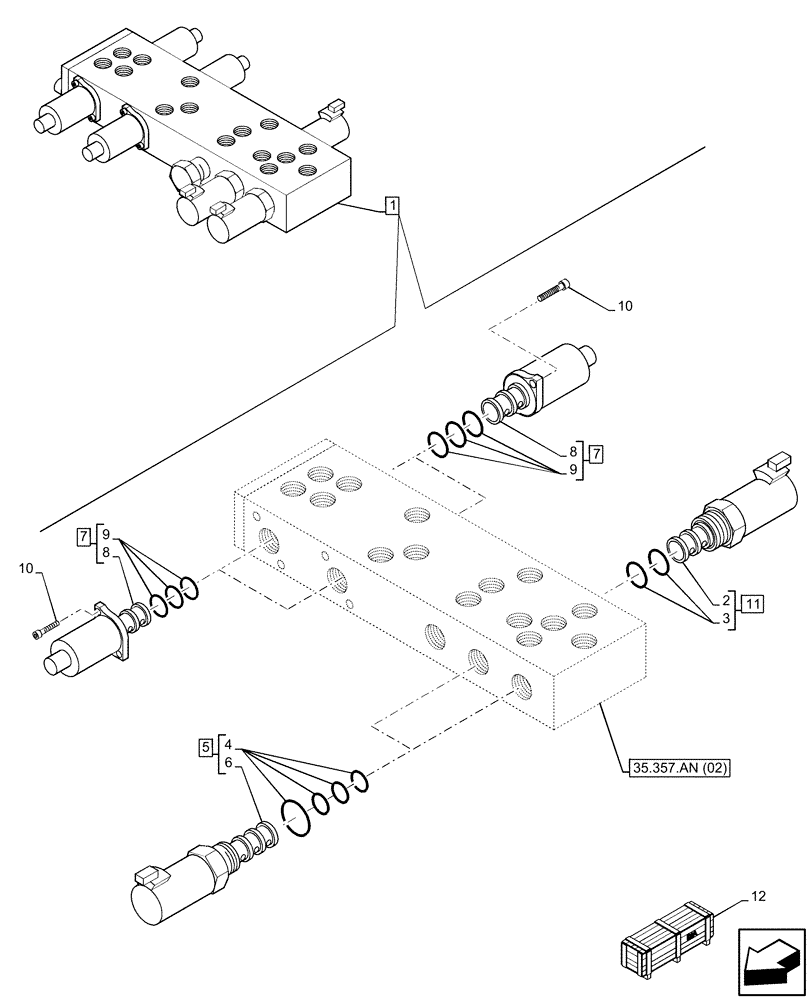

Схема запчастей Case 580N EP - (35.357.AG[01]) - 6-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, SOLENOID (35) - HYDRAULIC SYSTEMS
11
1
10
8
35.357.an (02)
6
3
5
10
12
7
9
8
9
2
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47765052

HYDRAULIC VALVE

ASSY, Proportional Pilot Pressure, Incl 2 - 11

1шт.

See Hydraulic Valve Components also in Figure 35.357.AN (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

1шт.

3

85827998

SEAL KIT

1шт.

4

85828002

SEAL KIT

2шт.

5

85827996

SOLENOID VALVE,2 Section

ASSY, Incl 4, 6

2шт.

Pattern Change

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

2шт.

7

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 8 (Qty 1), 9 (Qty 1)

4шт.

RH/LH Stab. Retract PWM & RH/LH Stab. Extend PWM

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 7

4шт.

9

85828000

SEAL KIT

4шт.

10

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

8шт.

11

85827994

SOLENOID VALVE

ASSY, Incl 2, 3

1шт.

Joystick Enable

1шт.

12

47661834

CONSTRUCTION DIA

No Aux to Combo, Standard Dipper, Pilot Control, Incl 7 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47501545

CONSTRUCTION DIA

No Aux to Combo, Standard Dipper, Pilot Control, Incl 7 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47501547

CONSTRUCTION DIA

No Aux to Combo, Extendable Dipper, Pilot Control, Incl 7 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47662029

CONSTRUCTION DIA

Uni-Aux to Combo, Extendable Dipper, Pilot Control, Incl 7 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47661814

CONSTRUCTION DIA

Pilot Control, 3 Spool, Powershift Transmission, Incl 7 - 9

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
