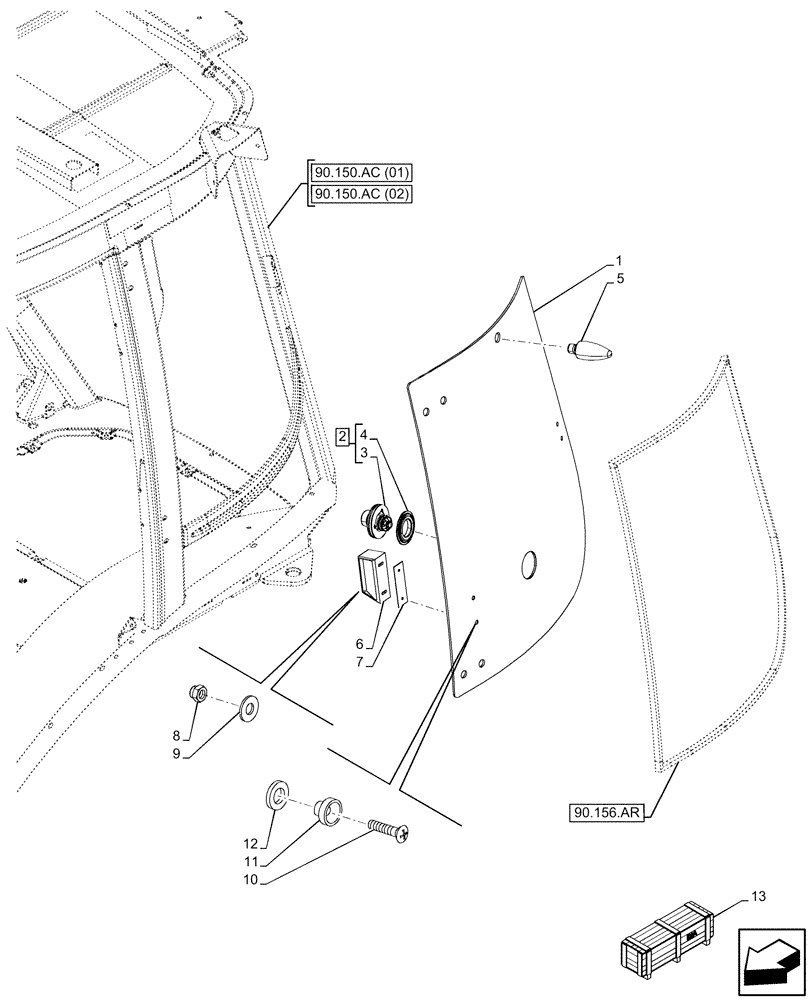

Запчасти Case 580N EP (90.156.AO[01]) - VAR - 747853, 747854, 747855 - CAB, NARROW, LEFT LATERAL WINDOW, GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84339224

GLASS

LH, Rear, Quarter

1шт.

2

84403979

LATCH

Glass Hold Together, Male, ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Latch, Incl in 2

1шт.

4

84355909

RING,85.3mm OD, 44mm ID

1шт.

5

84224398

BUMPER,6D Durometer EPDM Black

1шт.

6

97399C1

HANDLE

1шт.

7

R54047

PAD,30mm OD x 0.76mm Thk

1шт.

8

F45165

SPECIAL NUT,#10-24

2шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

10

47499504

SCREW,Oval HD 10 - 24 x .875"

2шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

12

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

2шт.

13

84427154

CONSTRUCTION DIA

Male, DLP Hold Open Latch, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
