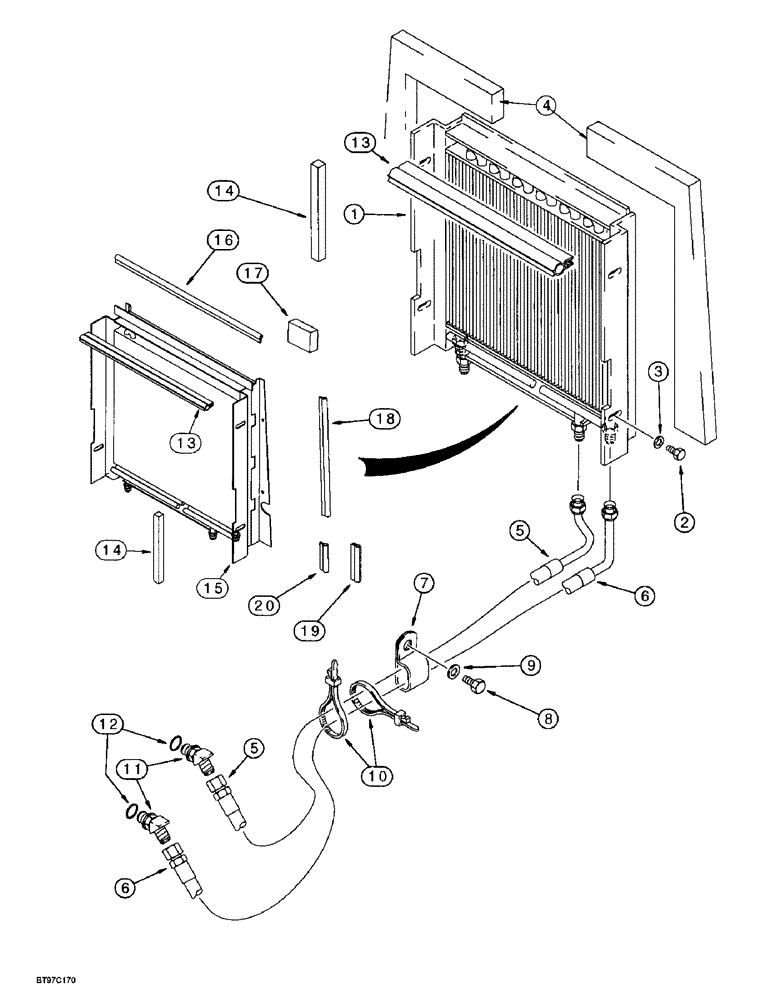

Запчасти Case 580SL (6-20) - TRANSMISSION COOLING SYSTEM, USED WITH 129264A1 OR 234876A1 RADIATOR ASSY (06) - POWER TRAIN

1

231280A1

COOLER, OIL

COOLER hydraulic oil, used w/129264A1 or 234876A1 radiator on Figure 2-02, uses radiator upper mtg bolts, see Figure 9-068 for hardware & Figure 8-008 for additional cooler hyd. routing, replaces 139783A1 cooler, if used, for service order 277114A1 cooler

1шт.

Part number is stamped on top of oil coolers.

1шт.

1a

277114A1

COOLER, OIL

COOLER - hydraulic oil, not used in production, for service of 231280A1 cooler, if used, not shown

1шт.

Part number is stamped on top of oil coolers.

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

4

233409A1

FOAM INSULATION

BAFFLE - foam, used with 231280A1, Ref 1 cooler

2шт.

237708A1

SEALANT

ANT - RTV clear, 10.3 ounce tube

1шт.

5

188829A1

HOSE

- 1215 mm (47-7/8 inch) long, transmission to cooler inlet

1шт.

6

188830A1

HOSE

- 1525 mm (60 inch) long, cooler, Serial Range: outlet-transmission

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double, 1 inch

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

183735A1

OIL SEAL

- radiator to oil cooler

1шт.

14

233311A1

RUBBER STRIP,20mm W x 270mm L x 20mm Thk

- adhesive back, 20 x 20 x 270 mm long, radiator to oil cooler

2шт.

15

233817A1

COOLER, OIL

COOLER - hydraulic oil, with steel flanges, used with 234876A1 radiator on Figure 2-02, uses radiator upper mounting bolts, see Figure 9-068 for hardware and Figure 8-008 for additional cooler hydraulic routing, if used

1шт.

Part number is stamped on top of oil coolers.

1шт.

16

233972A1

SEAL

- 564 mm (22-7/32 inch) long, cooler to wrapper, if used

1шт.

17

234719A1

SEAL

SEAL - 70 x 100 x 32 mm, top corner block, used with 345-44 adhesive, if used

2шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.

18

258746A1

SEAL

- 390 mm (15-3/8 inch) long, cooler side, if used

2шт.

19

258747A1

SEAL

- 132 mm (5-7/32 inch) long, cooler slot, if used

2шт.

20

258748A1

SEAL

- 100 mm (3-15/16 inch) long, cooler side, bottom, if used

2шт.
