(6-156) - REAR AXLE DIFFERENTIAL LOCK, CHASSIS MOUNTED DIFFERENTIAL LOCK SOLENOID VALVE

Запчасти Case 580SL (6-156) - REAR AXLE DIFFERENTIAL LOCK, CHASSIS MOUNTED DIFFERENTIAL LOCK SOLENOID VALVE (06) - POWER TRAIN

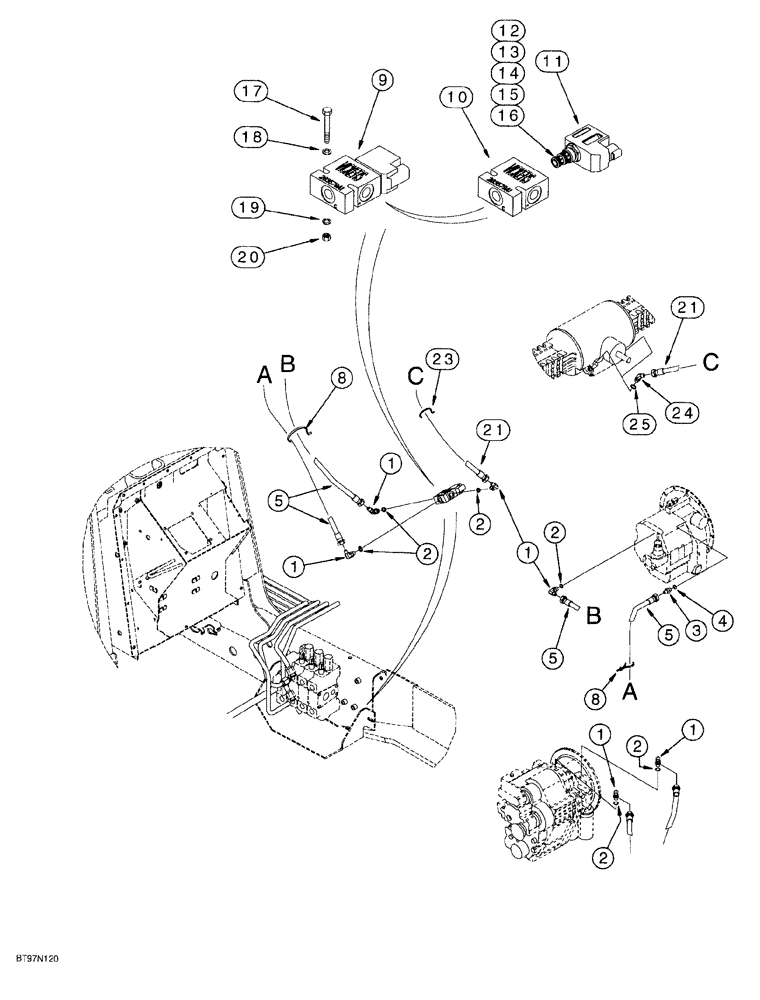

Схема запчастей Case 580SL - (6-156) - REAR AXLE DIFFERENTIAL LOCK, CHASSIS MOUNTED DIFFERENTIAL LOCK SOLENOID VALVE (06) - POWER TRAIN
18
24
17
2
11
5
5
23
19
2
8
1
13
2
21
1
16
8
13
14
21
1
20
3
9
1
25
15
5
2
1
10
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 2, four used on models without powershift transmissions; five used on models without powershift transmissions

4-5шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 4

1шт.

5

304019A1

HOSE

1200 mm (47-1/4 inch) long, transmission supply and return lines, transmission to solenoid valve

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

9

283579A1

SOLENOID VALVE

ASSEMBLY, solenoid, differential lock, Includes: Ref. 10-16 and jam nut

1шт.

10

297255A1

JUNCTION BOX

MANIFOLD valve

1шт.

11

349295A1

SOLENOID VALVE

VALVE ASSEMBLY, differential lock solenoid, 12 volt, replaces P/N 184505A1, Includes: Refs. 12-16

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE solenoid, cartridge, component parts are not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

NSS

NOT SOLD SEPARAT

NUT jam

1шт.

17

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

304020A1

HOSE

625 mm (24-5/8 inch) long, solenoid valve to rear axle

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, axle port location shown is for models with powershift the elbow is located on the opposite side of the axle input shaft, Includes: Ref. 25

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
