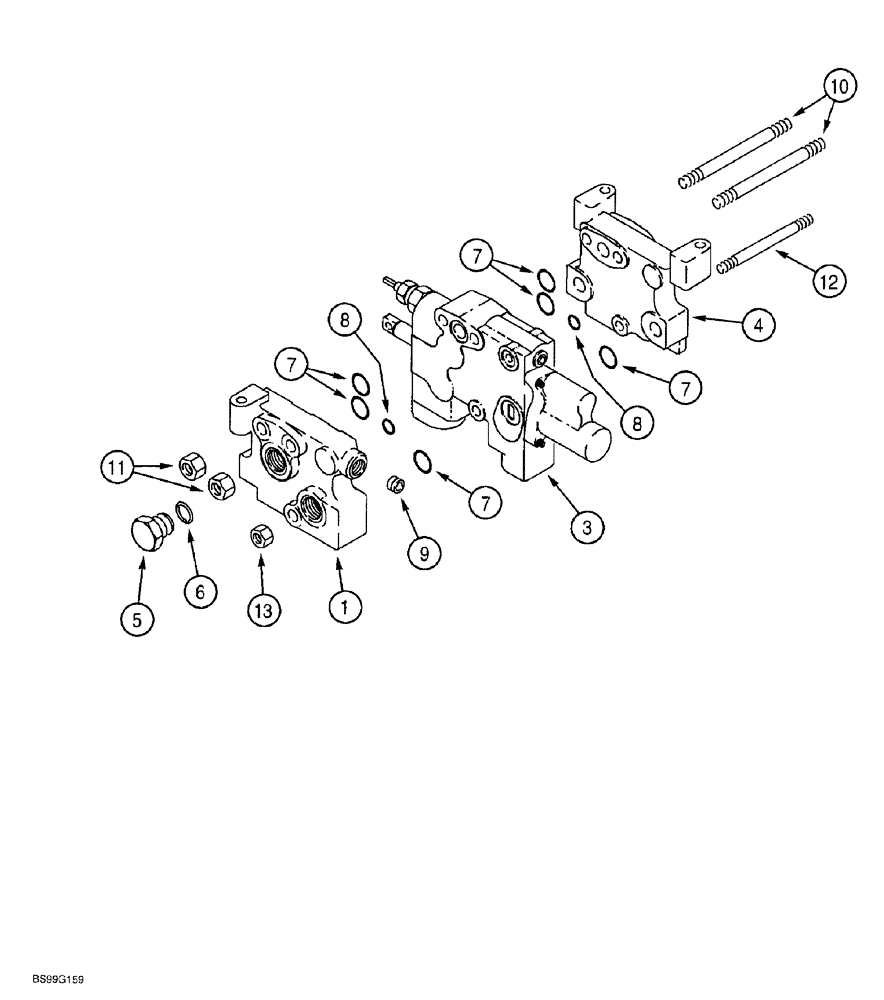

Запчасти Case 580SL (8-116) - AUXILIARY VALVE, HAND HELD HYDRAULICS, ONE SPOOL (08) - HYDRAULICS

121741A1

VALVE, CONTROL

ASSEMBLY, auxiliary, for hand held hydraulics, Includes: Refs. 1-13

1шт.

1

121638A2

ELEMENT

MANIFOLD cover, inlet/outlet

1шт.

3

131197A1

HYD VALVE SECTION

ASSEMBLY, hand held auxiliary hydraulics, parts list Fig. 8-118

1шт.

4

121639A2

ELEMENT

MANIFOLD cover, power beyond

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Section ports, large

6шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

Section ports, small

2шт.

9

137039A1

PLUG

hex socket

1шт.

10

1346129C3

TRUSS ROD

STUD tie

2шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

12

1346128C3

TRUSS ROD

STUD tie

1шт.

13

304951A1

NUT

hex, 10 mm - 1.5

2шт.
