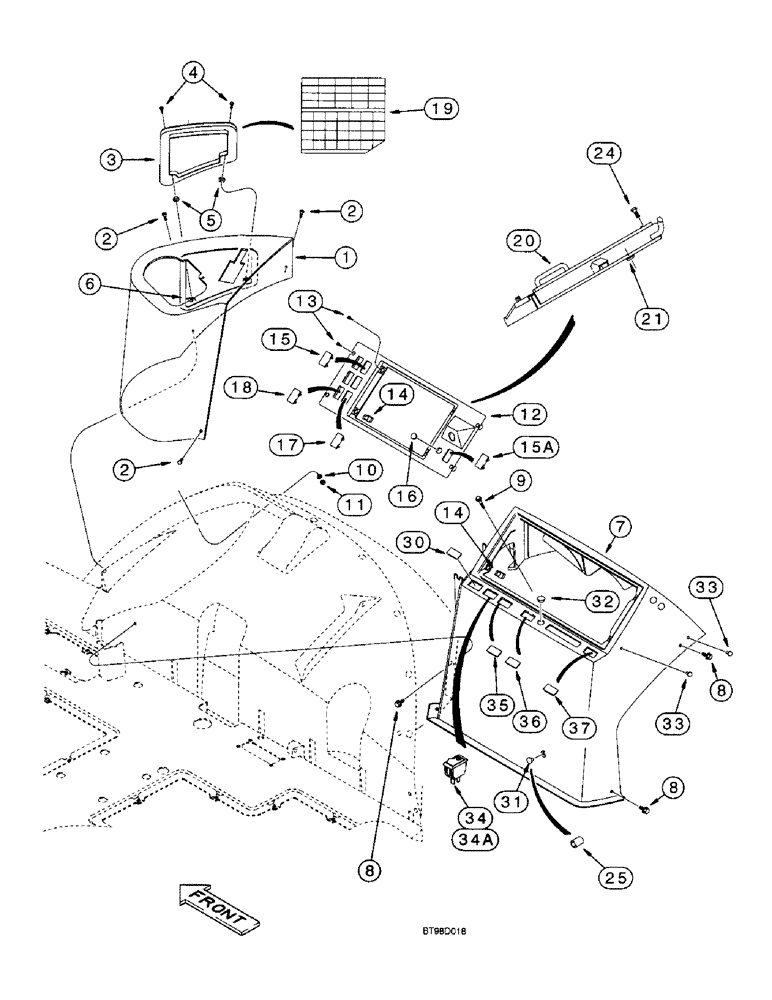

Запчасти Case 590SL (4-24) - SIDE INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

245891A2

COVER

- loader control

1шт.

2

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

3шт.

3

120032A1

COVER

PANEL - fuse access

1шт.

4

182276A1

SCREW

- special, No. 10 NC

2шт.

5

127009A1

CLIP,ELECTRICAL

RETAINER - screw, push-on

2шт.

6

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

7

295378A1

CONSOLE

PANEL - instrument, side, models without radio, if used, also order (1) 181385A1 theaded insert

1шт.

7a

294792A1

BRACKET

PANEL - instrument, side, models with radio, if used, also order (1) 181385A1 threaded insert, not shown

1шт.

See figure 4-20 for side console switches.

1шт.

8

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

3шт.

9

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm

1шт.

10

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

1шт.

12

123615A2

LARGE PLATE

PANEL - instrument cluster mounting

1шт.

13

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

8шт.

14

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 NC

8шт.

15

86000535

PLUG,1.427" x .62", Plastic

Auxiliary hydraulics, If used 1.427" x .62", Plastic

1шт.

15a

86000535

PLUG,1.427" x .62", Plastic

Accessory option, If used 1.427" x .62", Plastic

1шт.

16

353-406

PLUG,Dome, .625" hole, Nylon

- bottom, 5/8 inch, nylon, used in place of cold start button, if used

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Used in place of differential lock switch, If used 1.427" x .62", Plastic

1шт.

18

86000535

PLUG,1.427" x .62", Plastic

Used in place of 4WD switch, If used 1.427" x .62", Plastic

1шт.

19

REF

INSTRUCTION

DECAL - fuses and relays, see figure 9-1512, Ref. 4 for decal

1шт.

129586A1

COVER

ASSEMBLY - instrument cluster panel, anti-vandalism, uses sxisting hardware, ROPS canopy models, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - instrument cluster panel

1шт.

21

F22426

STOP

BUMPER - rubber

3шт.

24

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.

25

181385A1

RIVET

INSERT - threaded, 8 mm - 1.25, if used

1шт.

30

86000535

PLUG,1.427" x .62", Plastic

Ride control, If used 1.427" x .62", Plastic

1шт.

See figure 4-20 for side console switches.

1шт.

31

1340319C1

PLUG

- flat face, pry out, 7/16 inch diameter, if used, Replaces 353-425 plug

1шт.

See figure 4-20 for side console switches.

1шт.

32

353-429

PLUG

- flat face, pry out, 11/16 inch diameter

1шт.

See figure 4-20 for side console switches.

1шт.

33

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch

2шт.

See figure 4-20 for side console switches.

1шт.

34

133714A1

BEACON SWITCH

- rocker, rotating beacon

1шт.

34a

86000535

PLUG,1.427" x .62", Plastic

Rotating beacon, If used, Not shown 1.427" x .62", Plastic

1шт.

35

86000535

PLUG,1.427" x .62", Plastic

Quick coupler, If used 1.427" x .62", Plastic

1шт.

36

86000535

PLUG,1.427" x .62", Plastic

Accessory, If used 1.427" x .62", Plastic

1шт.

37

86000535

PLUG,1.427" x .62", Plastic

Low flow, If used 1.427" x .62", Plastic

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm, (116 inch) long

1шт.

292654A1

RADIO

PACKAGE - radio ready, order from machinery Price List, includes Ref. 7A, 30, 31, 32 and 33, plus see parts of Figs. 4-44 and 9-130, no longer available, order components

1шт.

See figure 4-20 for side console switches.

1шт.
