(06-44) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (CLOCKWISE INPUT, MODELS WITHOUT POWERSHIFT)

Запчасти Case 580SM (06-44) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (CLOCKWISE INPUT, MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

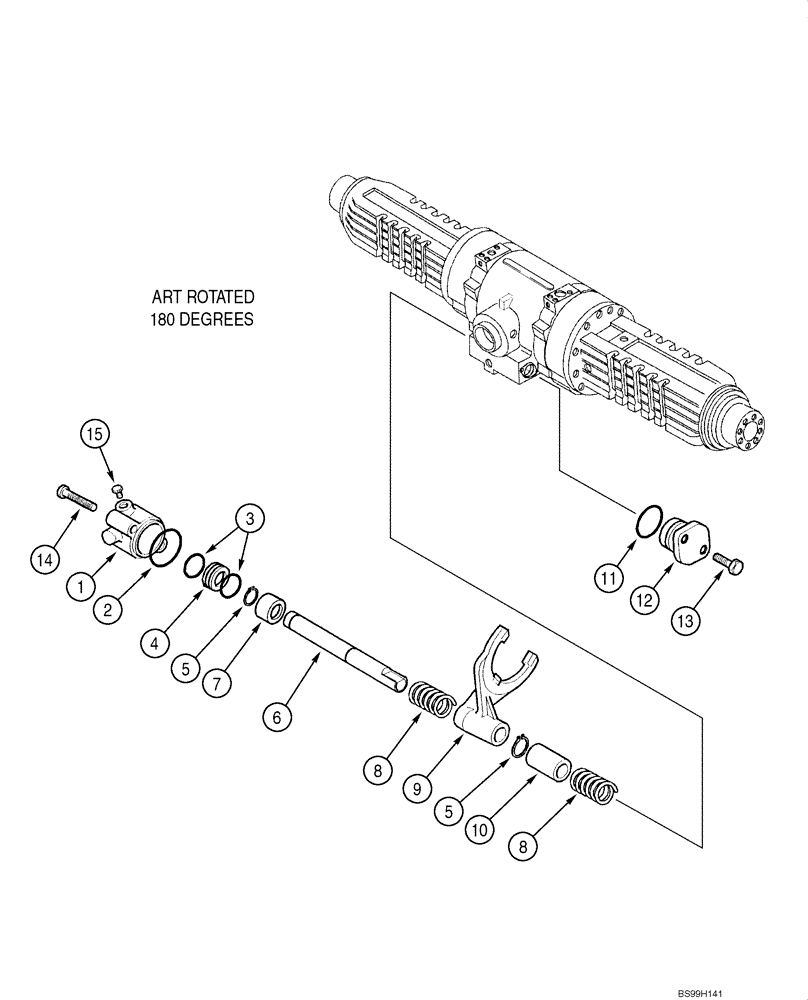

Схема запчастей Case 580SM - (06-44) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (CLOCKWISE INPUT, MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN
9
8
1
13
15
7
5
10
8
3
4
5
11
14
12
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384956A1

AXLE, REAR

AXLE REAR w/o Powershift Transmission, Incl. Ref 1 - 15; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384956A1R

REMAN-REAR AXLE

REMANUFACTURED - Axle Rear, w/o Powershift Transmission

1шт.

384956A1C

CORE-REAR AXLE

Return Number

1шт.

1

292213A1

CYLINDER

1шт.

2

305152A1

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

800-5120

SNAP RING,M20, Ext

No. 20

2шт.

6

292214A1

SHAFT

Rail, Shifter Fork

1шт.

7

292902A1

RING

Bushing

1шт.

8

175966A1

SPRING

2шт.

9

175964A2

FORK

1шт.

10

175965A1

BUSHING

1шт.

11

128376A1

O-RING

1шт.

12

175968A1

SUPPORT

Cover

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

Plug

1шт.
