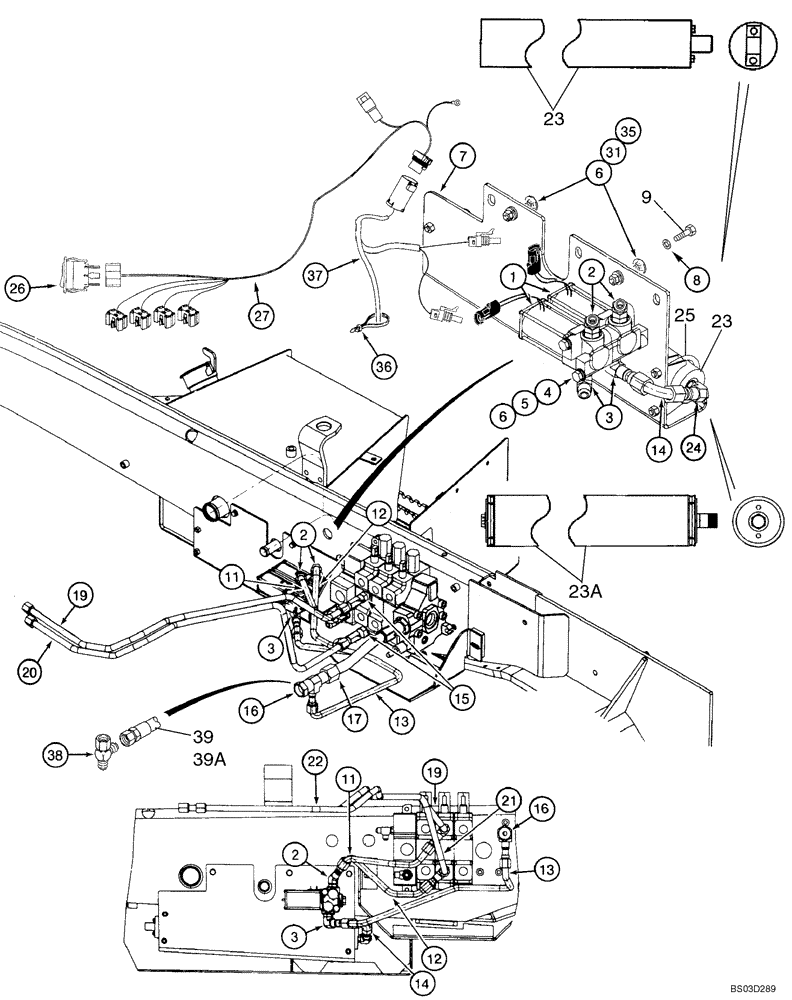

Запчасти Case 580SM (08-21) - HYDRAULICS - RIDE CONTROL (297977A4 SOLENOID VALVE) (08) - HYDRAULICS

REF

INSTRUCTION

Ride Control Hydraulic and Electrical Circuit

1шт.

1

297977A4

SOLENOID VALVE

Ride Control; Includes Two Valves; Includes 313310A1, 391138A1, 392401A1; Replaces 297977A3; If Used

1шт.

313310A1

GASKET KIT

Seal; Includes (4) O-rings Which Are Not Serviced Separately, (One Kit Per Valve)

2шт.

391138A1

KIT

Includes (1) Poppet, (2) Springs, (1) Guide Tube and Case Assembly Which Are Not Serviced Separately; Includes 392401A1

2шт.

392401A1

COIL

1шт.

434560A1

KIT

Service Upgrade for 297977A3, Solenoid Valve; Includes 2 Valves; If Used

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

3

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

7/8 fl x 3/4 adj Or; Incl. Ref 3A

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

4

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

278169A1

PLATE

1шт.

8

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thk

2шт.

9

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

11

240709A4

TUBE

Left-Hand Solenoid Valve Upper Port To Tee At Loader Valve Upper Lift Section

1шт.

12

377997A1

TUBE

Right-Hand Solenoid Valve Upper Port To Tee At Loader Valve Lower Lift Section

1шт.

13

240706A2

TUBE

To Tee At Filter; Models With Ride Control, But Without Hydraulic Tool Quick Coupler; See Ref 39 For Models With Both

1шт.

14

240703A2

TUBE,15.88 mm OD

Accumulator To Right-Hand Solenoid Valve Lower Port

1шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Attaches To Tees At Loader Valve Lift Section; For Tees At Loader Valve Lift Section, See Figure 08-04

2шт.

16

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

To Tee At Filter; See Figure 08-03

1шт.

17

230078A2

HOSE

415 mm (16-3/8 in); Replaces Existing Hose From Loader Valve To Filter; See Figure 08-03

1шт.

19

230072A1

TUBE

Replaces Existing Tube At Loader Valve Upper Lift Port To Left-Hand Loader Lift Cylinder Rod End; See Figure 08-04

1шт.

20

230073A1

TUBE

Replaces Existing Tube At Loader Valve Lower Lift Port To Left-Hand Loader Lift Cylinder Closed End; See Figure 08-04

1шт.

23

234412A1

ACCUMULATOR,0.98L

Ride Control; See Figure 08-52

1шт.

23a

448284A1

ACCUMULATOR,275 Bar

Component Parts Not Serviced Separately; Used In Production; For Service, Order 234412A1, Ref. 23

1шт.

24

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

7/8 fl x 3/4 Or; Incl. Ref 24A

1шт.

24a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal, Not Illustrated

1шт.

25

A13240

CLAMP,2-5/8" ID

Two Piece; Includes Hardware

2шт.

26

235002A1

ROCKER SWITCH

Ride Control

1шт.

27

390518A3

HARNESS

Side Console Options

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

32

121413A1

FUSE,15A, Mini, Blue

Not Illustrated

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

37

390520A2

HARNESS

Chassis Options

1шт.

38

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Models With Both Ride Control and Hydraulic Tool Quick Coupler

1шт.

39

293037A1

TUBE,15.88 mm OD, 485, 374 mm Length

374 mm (14-23/32 in); Left-Hand Solenoid Valve Lower Port To Tee At Filter; Models With Both Ride Control and Hydraulic Tool Quick Coupler; If Used

1шт.

39a

87416314

TUBE,.625" OD

442 mm (17-13/32 in); Left-Hand Solenoid Valve Lower Port To Tee At Filter; Models With Both Ride Control and Hydraulic Tool Quick Couplter; If Used

1шт.

35

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
