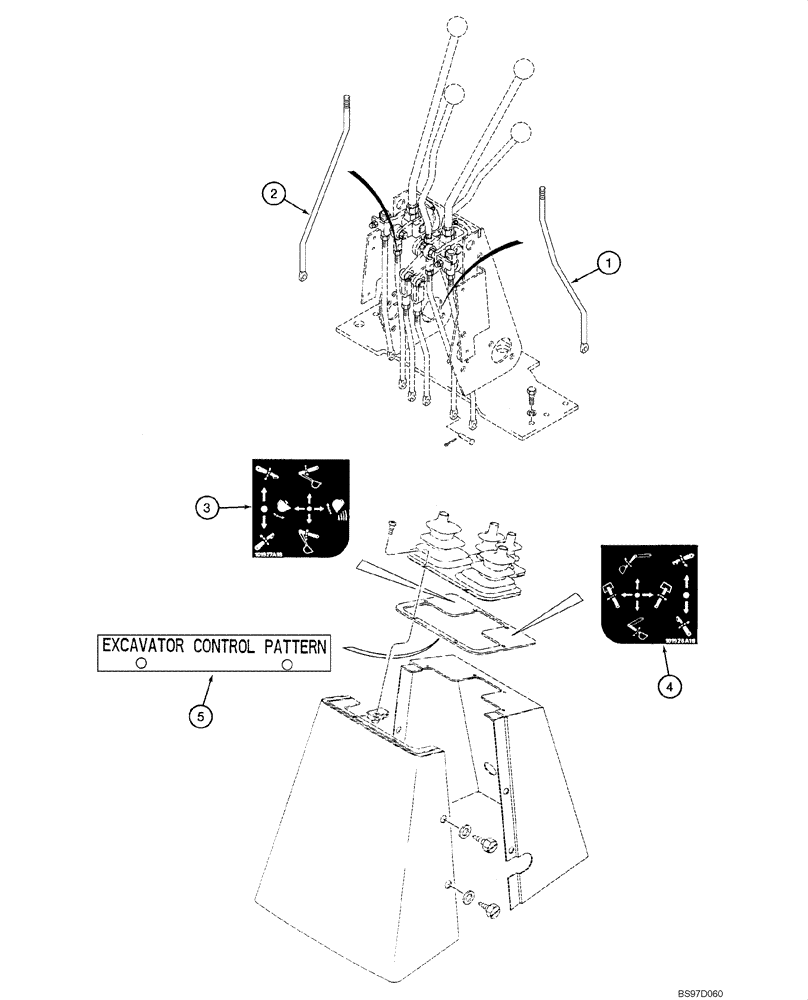

Запчасти Case 580SM (09-17) - CONTROLS - BACKHOE, EXCAVATOR CONTROL PATTERN (09) - CHASSIS/ATTACHMENTS

403042A1

KIT

Excavator Control Pattern; Incl. Ref 1 - 5; Purchase From Parts and Components; The Control Lever Used To Control Dipper, Now Controls Boom; If Machine Is Equpped With Foot Swing Controls, Foot Swing to Hand Swing Control Field Kit Must Be Installed First

1шт.

1

195030A2

ROD

Dipper, Replaces Existing Boom Control Rod

1шт.

2

195032A1

ROD

Boom; Replaces Existing Dipper Control Rod

1шт.

3

E49498

DECAL

Control; Right-Hand

1шт.

4

E49497

DECAL

Control; Left-Hand

1шт.

5

198410A1

LARGE PLATE

PLATE, LARGE Excavator Control Pattern

1шт.
