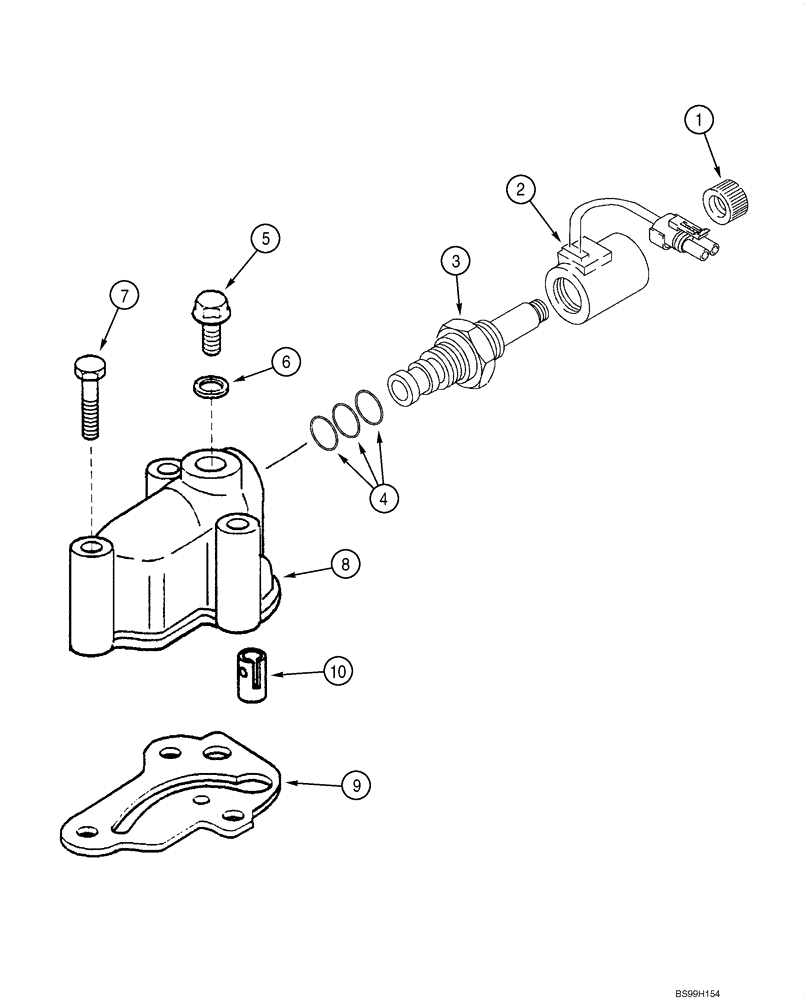

Запчасти Case 580SM (06-24) - TRANSMISSION ASSY (4WD) - VALVE, SOLENOID (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

329079A3

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 10; Also Includes Parts On Figures 06-14 - 06-24; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

190432A1

SOLENOID

Valve, Incl. Ref 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Nut

1шт.

2

NSS

NOT SOLD SEPARAT

Coil

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

4

181149A1

SEAL PACKAGE

Includes 238-5014, 238-5015, 237-6010 O-Rings, Kit Not Serviced Separately, Order 190432A1 Solenoid Valve

1шт.

5

181100A1

PLUG,1/8 CAS x 8

1шт.

6

934667R1

SEALING RING,M10 x 14 x 1

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

321428A1

HOUSING

1шт.

9

366910A1

GASKET

1шт.

10

190431A1

VALVE

Installed Between Ref 8 and 9

1шт.
