(08-50) - VALVE ASSY - AUXILIARY BACKHOE

Запчасти Case 590SM (08-50) - VALVE ASSY - AUXILIARY BACKHOE (08) - HYDRAULICS

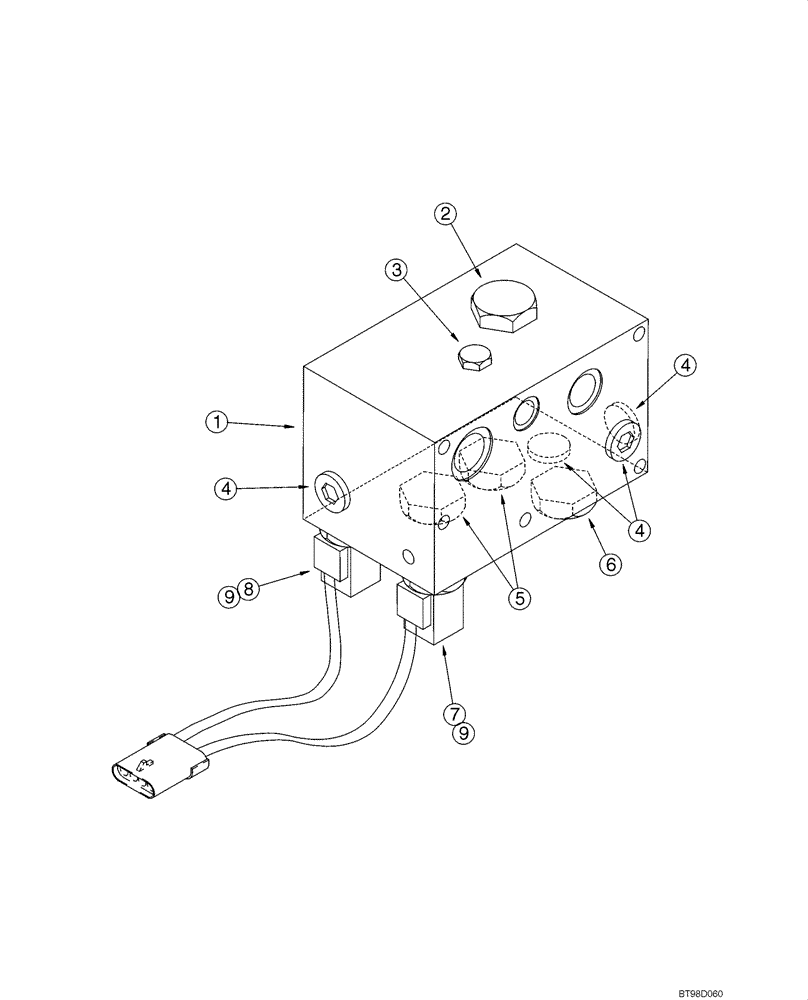

Схема запчастей Case 590SM - (08-50) - VALVE ASSY - AUXILIARY BACKHOE (08) - HYDRAULICS
4
3
5
6
1
7
9
2
9
4
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

298772A1

VALVE

Auxiliary Backhoe Valve; Incl. Ref 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

309785A1

VALVE

Component Parts Not Serviced Separately

1шт.

3

304371A1

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Incl. 237-6012

4шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

5

309789A1

VALVE

Component Parts Not Serviced Separately

2шт.

6

309788A1

VALVE

Component Parts Not Serviced Separately

1шт.

7

309784A1

VALVE

Component Parts Not Serviced Separately

1шт.

8

309790A1

VALVE

Component Parts Not Serviced Separately

1шт.

9

309791A1

COIL

2шт.

309787A1

SEAL PACKAGE

Incl. (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately; For Use With Ref 2 and 5 - 7

5шт.

149942C1

SEAL KIT

Incl. (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately, For Use With Ref 3 and 8

2шт.
