(27.100.030) - REAR AXLE, MOUNTING PARTS

Запчасти Case 580SN (27.100.030) - REAR AXLE, MOUNTING PARTS (27) - REAR AXLE SYSTEM

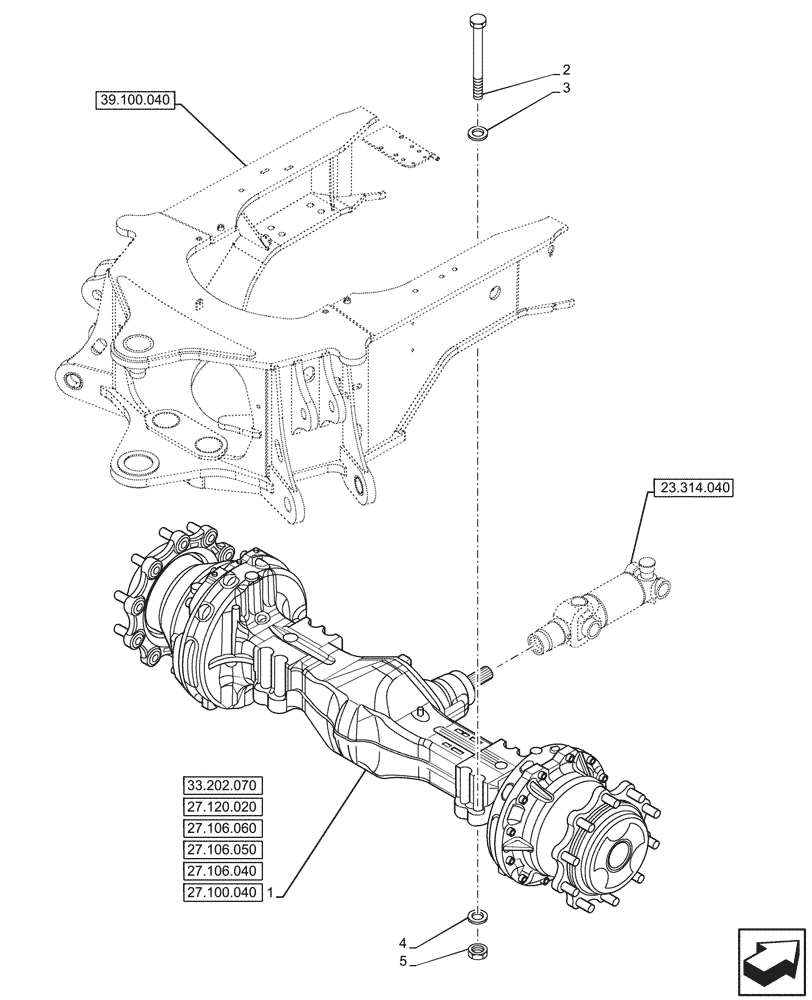

Схема запчастей Case 580SN - (27.100.030) - REAR AXLE, MOUNTING PARTS (27) - REAR AXLE SYSTEM
39.100.040
4
3
1
5
2
33.202.070
27.106.050
23.314.040
27.120.020
27.106.060
27.106.040
27.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84178115

REAR AXLE

ASSY, Rear

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

3

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.
