(27.106.060) - REAR AXLE, DIFFERENTIAL LOCK

Запчасти Case 580SN (27.106.060) - REAR AXLE, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

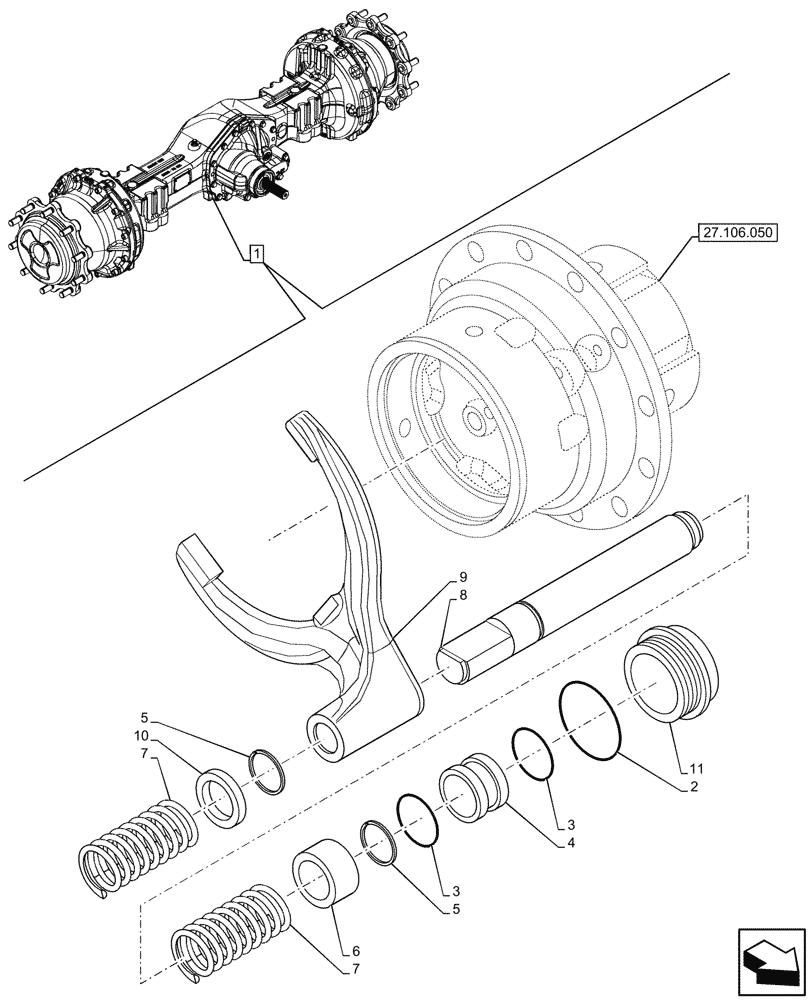

Схема запчастей Case 580SN - (27.106.060) - REAR AXLE, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
27.106.050
6
7
1
11
4
2
5
9
10
8
7
3
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84178115

REAR AXLE

ASSY, Rear, Incl 2 - 11

1шт.

See also Rear Axle Components in Figures 27.100.040, 27.106.040, 27.106.050, 27.120.020, 33.202.070

1шт.

2

87708415

O-RING

1шт.

3

292210A1

SEAL

Piston

2шт.

4

292212A1

PISTON

Differential Lock

1шт.

5

87708417

CIRCLIP

Locking Ring

2шт.

6

87708420

BUSHING

1шт.

7

175966A1

SPRING

2шт.

8

87708422

PISTON

Rear Axle Control

1шт.

9

87708424

FORK

1шт.

10

87708427

SPACER

1шт.

11

87708413

CYLINDER

Differential Locking

1шт.
