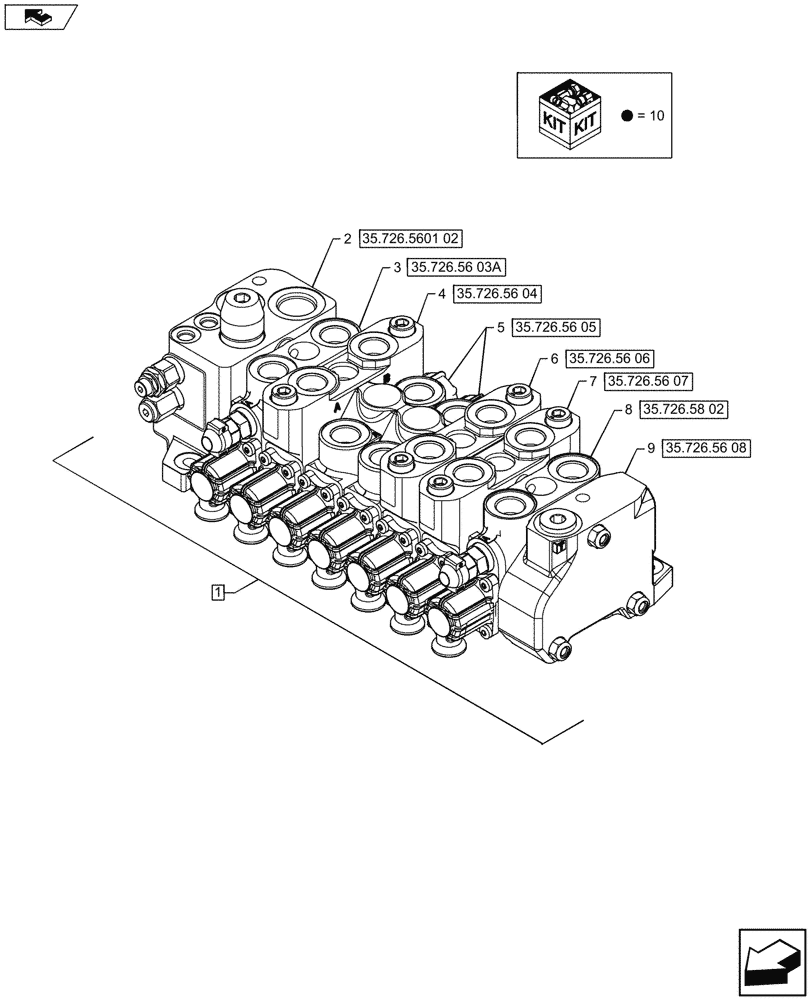

Запчасти Case 580SN (35.726.5801[02]) - BACKHOE CONTROL VALVE, 7-SPOOL, W/ STANDARD DIPPER, W/ DOUBLE AUXILIARY HYDRAULIC, W/ PILOT CONTROLS - D9006 (35) - HYDRAULIC SYSTEMS

1

84551842

CONTROL VALVE

Assy, Incl 2 - 10

1шт.

2

84278712

HYD VALVE SECTION

Inlet Section, Assy

1шт.

3

84586031

HYD VALVE SECTION

Swing Section, Assy

1шт.

4

84278714

HYD VALVE SECTION

Boom Section, Assy

1шт.

4

84278714R

REMAN-HYD VALVE

Reman Boom Section, Assy

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

Stabilizer Section, Assy

2шт.

6

84278710

HYD VALVE SECTION

Dipper Section, Assy

1шт.

7

84278702

HYD VALVE SECTION

Bucket Section, Assy

1шт.

8

84278691

HYD VALVE SECTION

Bi-Dir Section, Assy

1шт.

9

85811915

HYD VALVE SECTION

Outlet Section, Assy

1шт.

10

87751102

BOLT

1шт.
