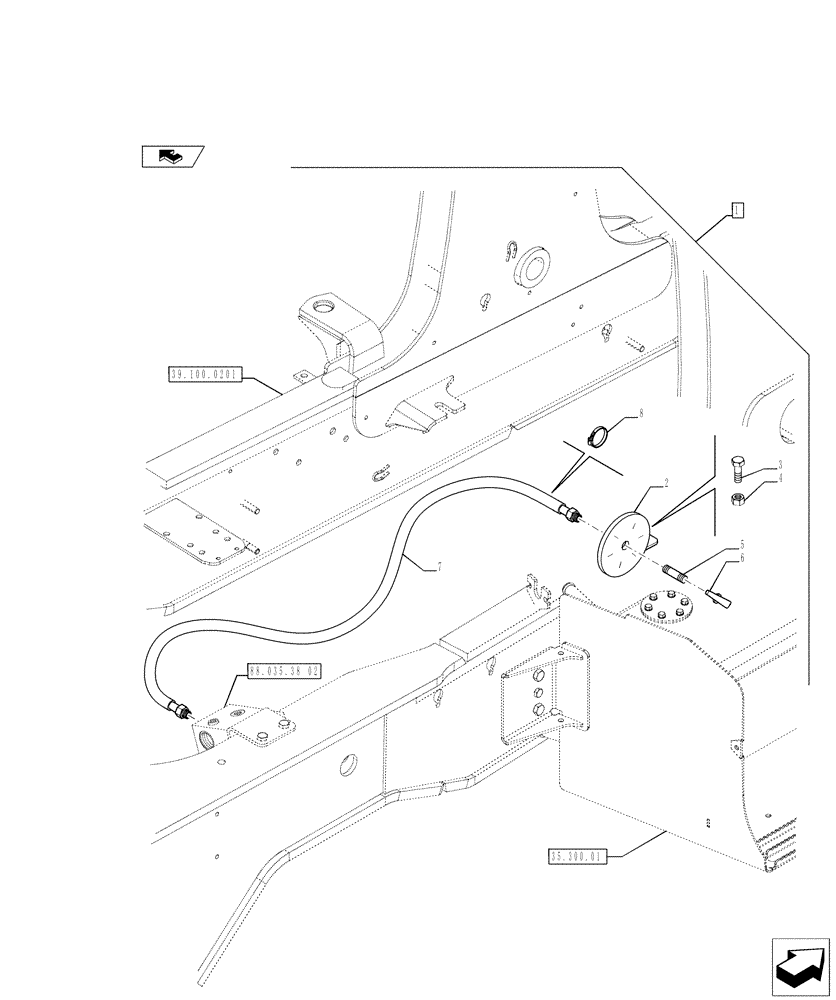

Запчасти Case 580SN (88.035.38[03]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES

1

47358915

CONSTRUCTION DIA

UNI-AUX STANDARD PILOT CONTROLS, Incl 2 - 8

1шт.

See Ref. 88.035.38 [01] to 88.035.38 [02], 88.035.38 [04] to 88.035.38 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84391738

BRACKET

1шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

4

412141

NUT,M10 x 1.5, Cl 8

2шт.

5

13804521

SET SCREW,M8 x 20, Cl 8.8

1шт.

6

84367646

KNOB

1шт.

7

84377870

CABLE,1630mm L

1шт.

8

D138055

CLAMP

2шт.
