(55.511.AI[06]) - VAR - 423000 - REAR LIGHT, WIRE HARNESS

Запчасти Case 580SN (55.511.AI[06]) - VAR - 423000 - REAR LIGHT, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

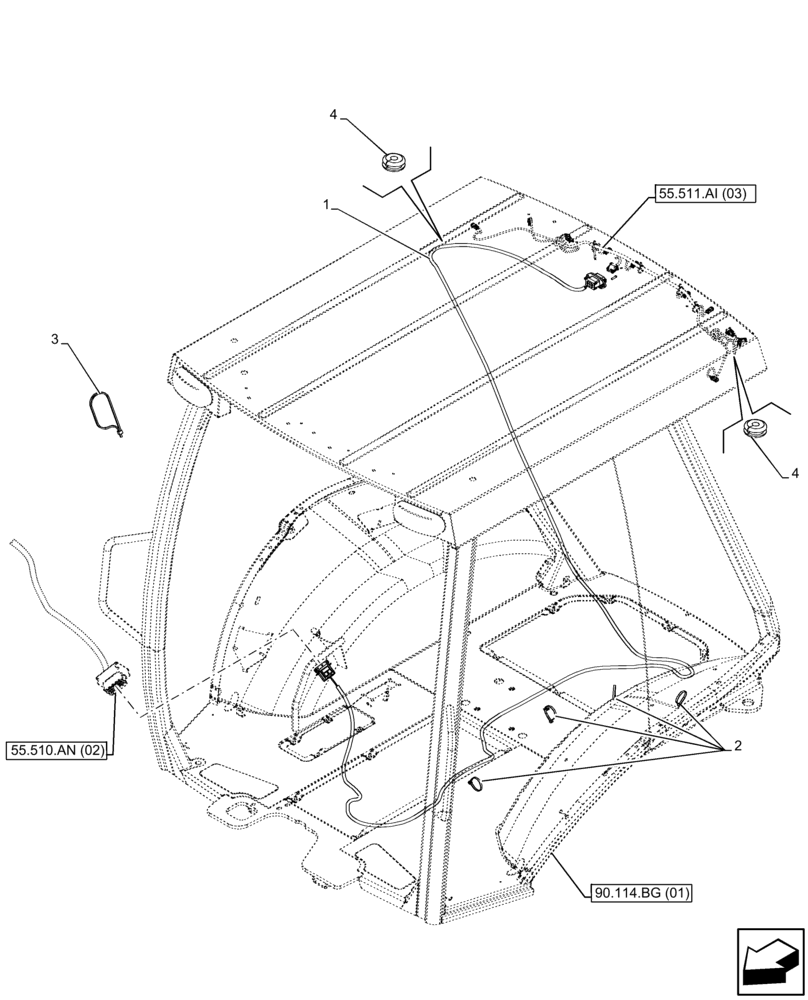

Схема запчастей Case 580SN - (55.511.AI[06]) - VAR - 423000 - REAR LIGHT, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
4
90.114.bg (01)
55.511.ai (03)
55.510.an (02)
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47533359

WIRE HARNESS

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

4

87370966

GROMMET,25.4mm OD, 7.94mm ID, 11.11mm L

2шт.

Выбрано товаров: 4
