(21.300.00) - DRIVESHAFT - REAR AXLE (580N, 580SN)

Запчасти Case 580SN (21.300.00) - DRIVESHAFT - REAR AXLE (580N, 580SN) (21) - TRANSMISSION

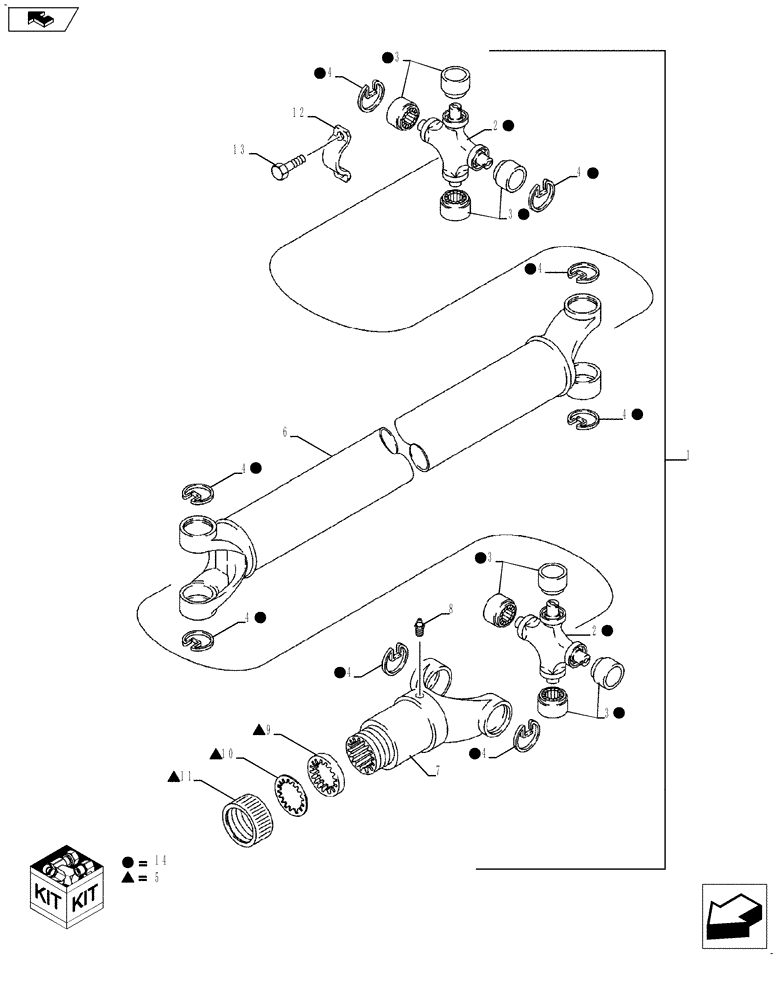

Схема запчастей Case 580SN - (21.300.00) - DRIVESHAFT - REAR AXLE (580N, 580SN) (21) - TRANSMISSION
14
4
14
4
14
3
1
14
12
5
9
4
10
6
8
5
3
5
4
14
2
14
3
14
14
14
5
4
11
14
13
3
7
14
14
14
5
14
home
4
14
4
2
14
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87613924

DRIVE SHAFT

Inc 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

JOINT Universal, Incl in 14

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING Journal, Incl in 14

4шт.

4

NSS

NOT SOLD SEPARAT

RING, Incl in 14

4шт.

5

87716824

CAP

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

87716823

YOKE

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER, Incl in 5

1шт.

11

NSS

NOT SOLD SEPARAT

Cap, Incl in 5

1шт.

12

90-6682T1

CLAMP

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.

14

393231A1

SPIDER

Kit, Universal Joint, Inc 2 - 4

2шт.
