(10.101.02) - CYLINDER HEAD COVERS (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.101.02) - CYLINDER HEAD COVERS (580SN, 580SN WT, 590SN) (10) - ENGINE

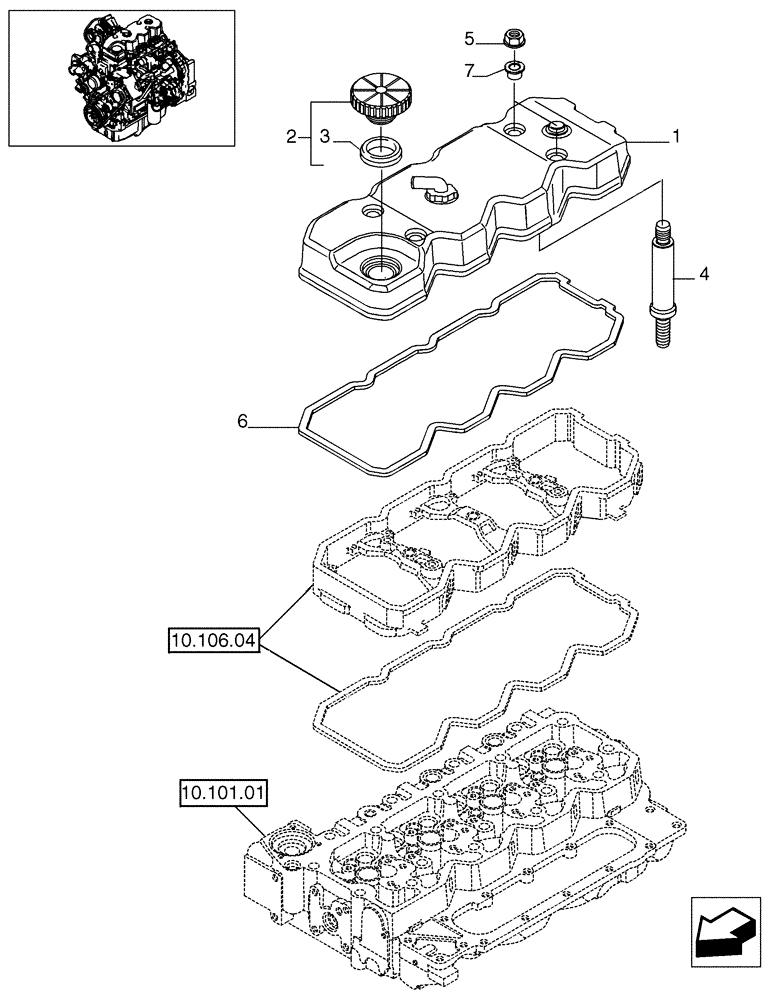

Схема запчастей Case 580SN - (10.101.02) - CYLINDER HEAD COVERS (580SN, 580SN WT, 590SN) (10) - ENGINE
2
3
6
5
1
7
4
10.106.04
10.101.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2853858

VALVE COVER

1шт.

2

98442027

CAP

Incl. 3

1шт.

3

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

1шт.

4

2854812

STUD,M8 x 1.25 x 113mm

4шт.

5

4893936

FLANGE NUT,Hex, M13, RH Thd, Cl 9.8

4шт.

6

4899228

GASKET,12mm Thk

1шт.

7

4899239

ISOLATOR,29mm OD x 13mm L

4шт.

Выбрано товаров: 7
