(10.103.06) - PULLEY - CRANKSHAFT (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.103.06) - PULLEY - CRANKSHAFT (580SN, 580SN WT, 590SN) (10) - ENGINE

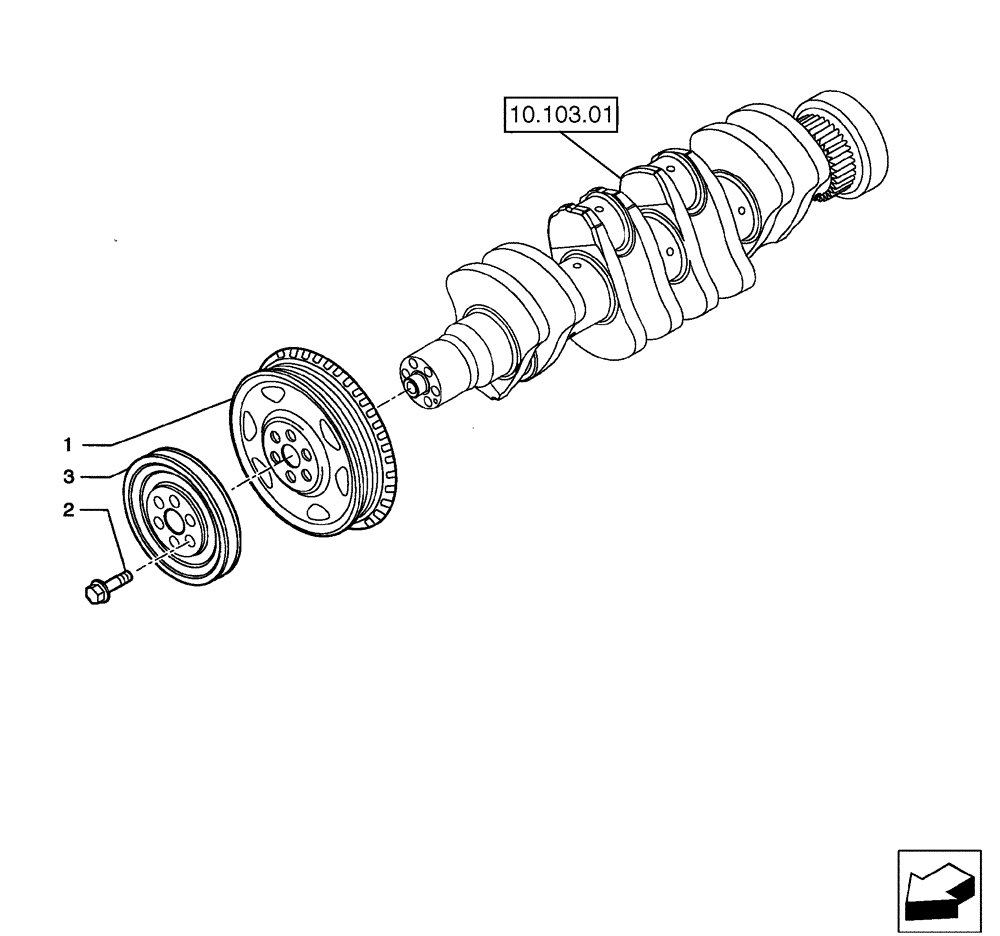

Схема запчастей Case 580SN - (10.103.06) - PULLEY - CRANKSHAFT (580SN, 580SN WT, 590SN) (10) - ENGINE
3
2
10.103.01
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4896773

PULLEY

1шт.

2

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

6шт.

3

2856238

PULLEY

1шт.
