(90.154.070) - VAR - 747853 - CAB, RIGHT, DOOR, LATCH, HANDLE

Запчасти Case 580SN WT (90.154.070) - VAR - 747853 - CAB, RIGHT, DOOR, LATCH, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

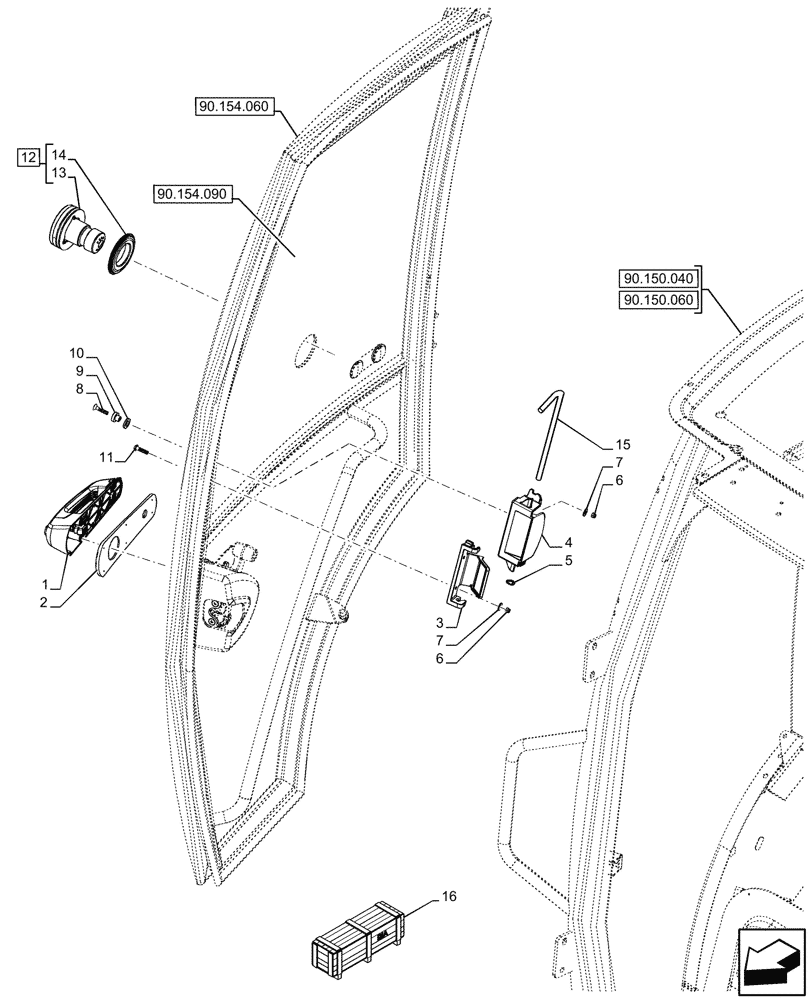

Схема запчастей Case 580SN WT - (90.154.070) - VAR - 747853 - CAB, RIGHT, DOOR, LATCH, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.040
2
16
8
6
9
14
12
1
6
10
11
3
5
7
13
4
7
15
90.154.060
90.150.060
90.154.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84224317

HANDLE

Exterior with 250 Key

1шт.

2

84224344

GASKET,43mm ID, 15.2mm ID, 223.9mm L

Exterior Handle

1шт.

3

47832496

LATCH

Slam

1шт.

4

47832497

HANDLE

Slam Lat

1шт.

5

87534717

PUSH-ON NUT,0.625" L

1шт.

6

F45165

SPECIAL NUT,#10-24

4шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

4шт.

8

47499504

SCREW,Oval HD 10 - 24 x .875"

2шт.

9

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

10

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

2шт.

11

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

12

84403980

LATCH

ASSY, Glass Hold Together, DLP Female, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Latch, Incl in 12

1шт.

14

84355905

RING,80mm OD, 44mm ID

1шт.

15

87534372

ROD,7.9mm OD

1шт.

16

84427155

CONSTRUCTION DIA

Hold Open Latch, Female, Incl 12 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
