(90.156.010) - VAR - 747853, 747854, 747855 - CAB, REAR, WINDOW, FRAME, GLASS

Запчасти Case 580SN WT (90.156.010) - VAR - 747853, 747854, 747855 - CAB, REAR, WINDOW, FRAME, GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

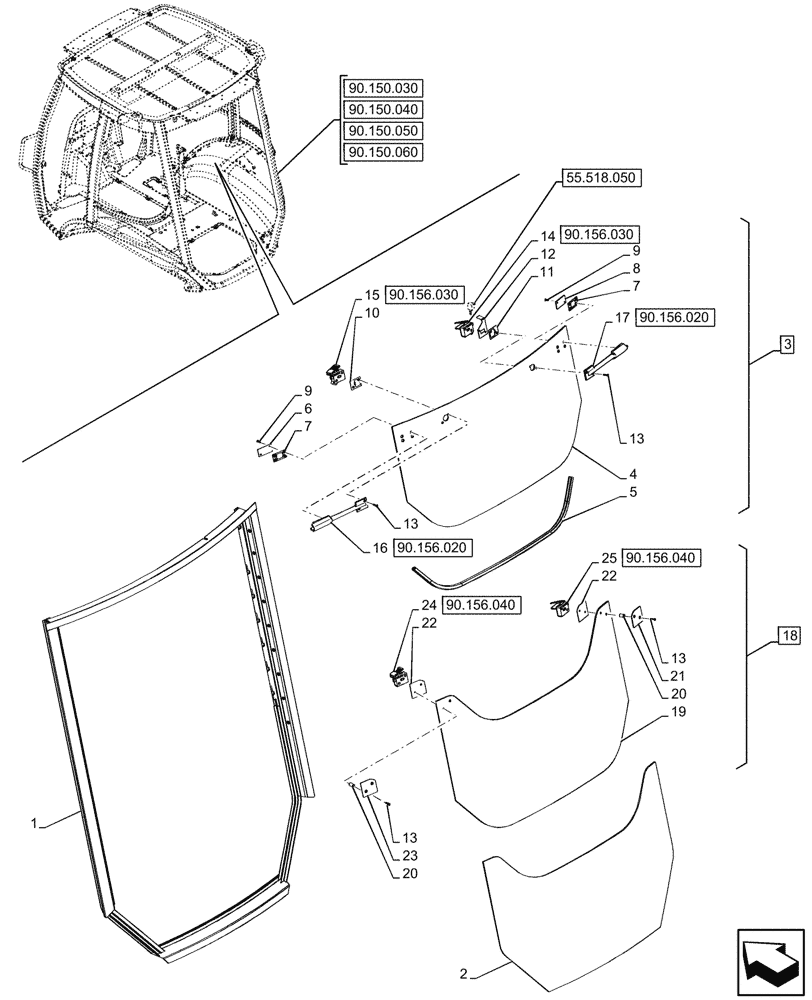

Схема запчастей Case 580SN WT - (90.156.010) - VAR - 747853, 747854, 747855 - CAB, REAR, WINDOW, FRAME, GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.050
7
12
10
9
16
14
20
24
7
6
9
11
23
18
13
20
3
1
19
5
22
13
21
17
25
13
8
22
15
4
2
13
55.518.050
90.150.060
90.156.020
90.156.020
90.156.040
90.156.040
90.150.040
90.150.030
90.156.030
90.156.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87435929

WINDOW FRAME

1шт.

2

352210A1

GLASS,CAB

Rear Lower

1шт.

3

87753180

WINDOW

ASSY, Rear Upper, Incl 4 - 12, 13 (Qty 4), 14 - 17

1шт.

4

352208A1

GLASS,CAB

Rear Upper

1шт.

5

395348A1

SEALING STRIP

1шт.

6

87423502

BACK PLATE

1шт.

7

402843A1

PLATE

2шт.

8

87423503

BACK PLATE

1шт.

9

87445051

HEX SOC SCREW,Flat Hd, Csk, M5 x 16mm, Gr 8.8, Prev Torque

4шт.

10

402845A1

PLATE

LH Top Catch

1шт.

11

402844A1

PLATE

RH Top Casting

1шт.

12

402836A1

BRACKET

1шт.

13

87435453

HEX SOC SCREW,FLAT, M5 x 0.8 x 25mm

8шт.

14

411914A1

LATCH

ASSY, RH Upper

1шт.

15

411912A1

LATCH

ASSY, LH Upper

1шт.

16

411911A1

LATCH

ASSY, LH Top

1шт.

LH - Determine from Seat facing Radiator

1шт.

17

411910A1

LATCH

ASSY, RH Top

1шт.

RH - Determine from Seat facing Radiator

1шт.

18

87432256

WINDOW ASSY

Rear Middle, Incl 13 (Qty 4), 19 - 25

1шт.

19

352209A1

GLASS,CAB

Rear Middle

1шт.

20

87428573

GROMMET,6.35mm ID, 8mm OD

4шт.

21

87426964

PLATE

1шт.

22

87426963

PLATE

2шт.

23

87426969

BACKING PLATE

1шт.

24

411908A1

LATCH

ASSY, LH

1шт.

25

411909A1

LATCH

ASSY, RH

1шт.
