(35.359.580) - 6-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, COMPONENTS

Запчасти Case 580SN WT (35.359.580) - 6-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS

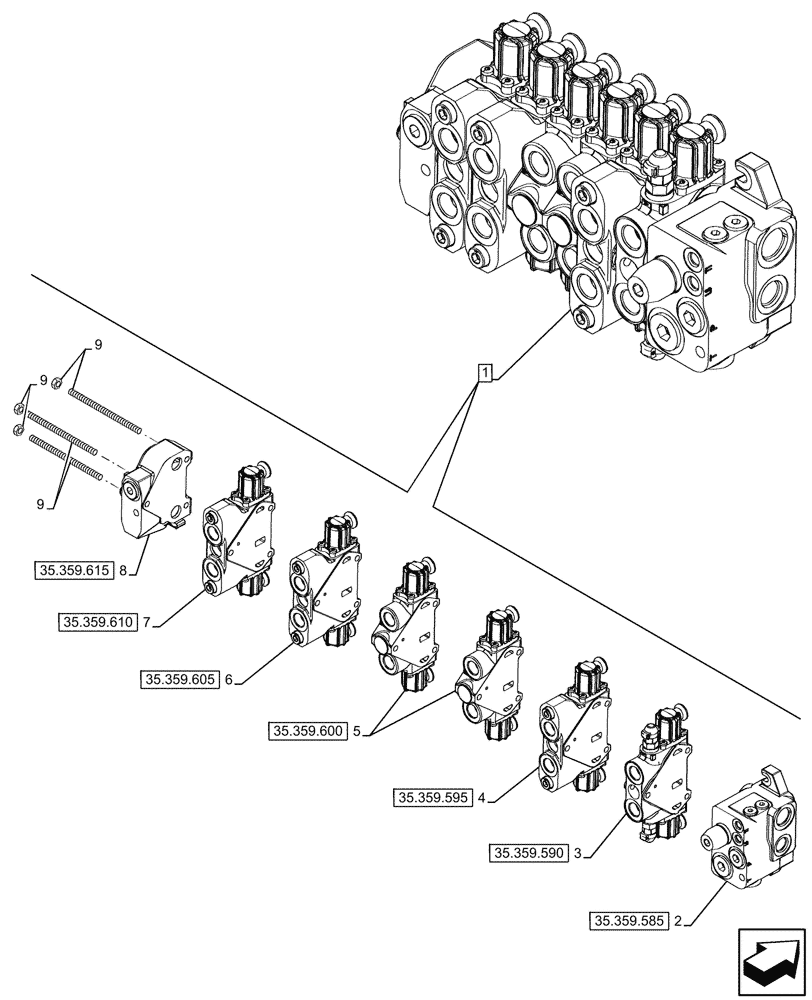

Схема запчастей Case 580SN WT - (35.359.580) - 6-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.595
8
2
6
3
9
1
5
7
9
9
4
35.359.615
35.359.585
35.359.590
35.359.600
35.359.605
35.359.610
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84551838

CONTROL VALVE

ASSY, Backhoe 6 Spool Pilot Control, Incl 2 - 9

1шт.

2

84278712

HYD VALVE SECTION

ASSY, Inlet

1шт.

3

84586031

HYD VALVE SECTION

ASSY, Swing

1шт.

4

84278714

HYD VALVE SECTION

ASSY, Boom

1шт.

4

84278714R

REMAN-HYD VALVE

Reman ASSY, Boom

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

ASSY, Stabilizer

2шт.

6

84278710

HYD VALVE SECTION

ASSY, Dipper

1шт.

7

84278702

HYD VALVE SECTION

ASSY, Backhoe Bucket

1шт.

8

85811915

HYD VALVE SECTION

ASSY, Outlet

1шт.

9

85811958

KIT

Backhoe 6 Spool Valve Tie Rods

1шт.
