(90.114.040) - VAR - 423000 - DELUXE CANOPY, WIDE, FRAME, WINDSHIELD

Запчасти Case 580SN WT (90.114.040) - VAR - 423000 - DELUXE CANOPY, WIDE, FRAME, WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

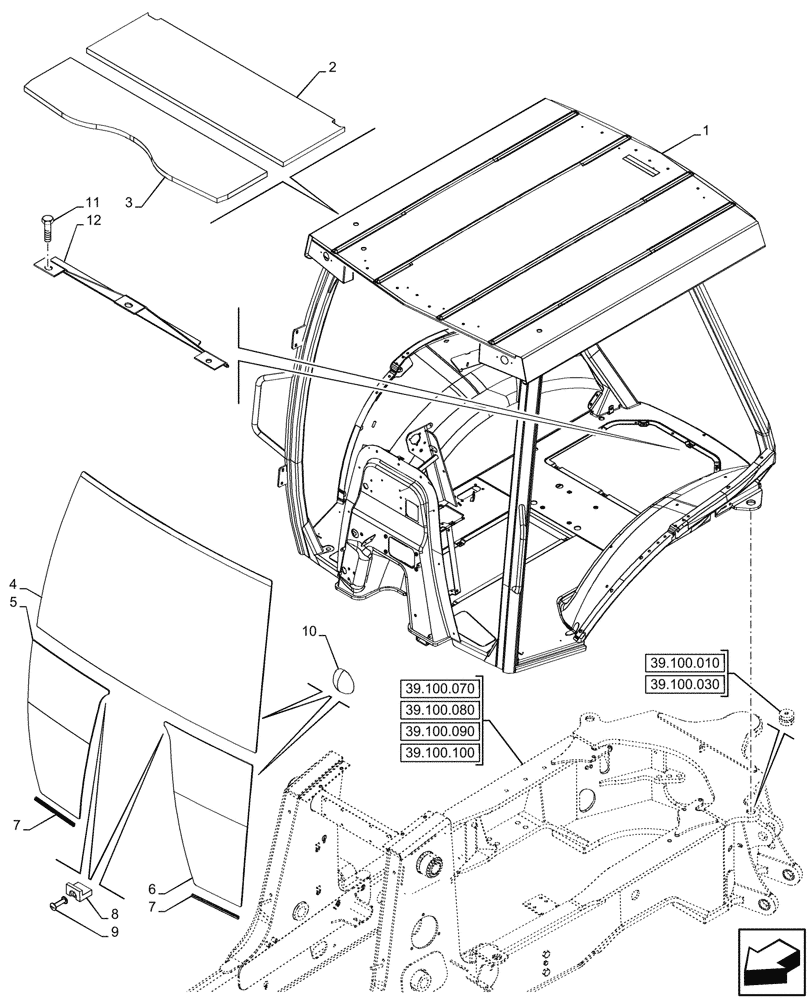

Схема запчастей Case 580SN WT - (90.114.040) - VAR - 423000 - DELUXE CANOPY, WIDE, FRAME, WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.100
6
11
4
3
1
12
2
7
9
5
8
10
7
39.100.080
39.100.010
39.100.030
39.100.090
39.100.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47569545

FRAME

Grey, Wide

1шт.

2

431584A1

PANEL

Roof Foam - Rear

1шт.

3

431583A1

PANEL

Roof Foam - Front

1шт.

4

84246306

GLASS

Windshield

1шт.

5

84246308

CAB GLASS ASSY

RH, Lower Windshield

1шт.

6

84246307

CAB GLASS ASSY

LH, Lower Windshield

1шт.

7

395793A1

PROTECTION STRIP

2шт.

8

151-516

RIVET,Pop, 1/8" x .775"

2шт.

9

279482A1

CLAMP

2шт.

10

391827A1

SPACER,11.1mm D

18шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

2шт.

12

84399305

SUPPORT

Front Foam

1шт.
