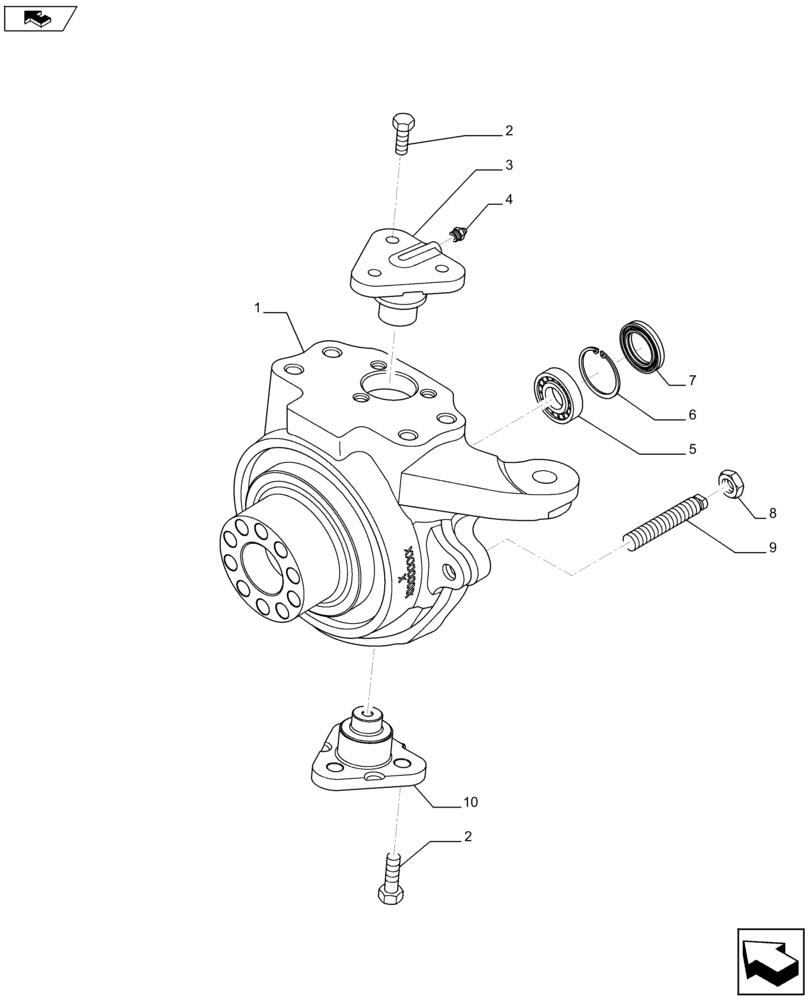

Запчасти Case 580SN WT (25.108.01[02]) - AXLE, FRONT DRIVE - HOUSING, SWIVEL HD ACP (580SN WT, 590SN) (25) - FRONT AXLE SYSTEM

1

84259618

STEERING KNUCKLE

Left Hand

1шт.

1

84259616

STEERING KNUCKLE

Right Hand (Not Shown)

1шт.

2

84273749

BOLT,M14 x 2 x 35mm

12шт.

3

84259754

PIN,49.9mm OD x 48mm L

2шт.

4

84351730

FITTING,M10 x 1

4шт.

5

84262394

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

6

84270868

CIRCLIP,75 PHC

1шт.

7

84264324

SEAL,53.2mm ID x 78mm OD x 14mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

1шт.

10

84259753

PIN,49.9mm OD x 45mm L

2шт.
