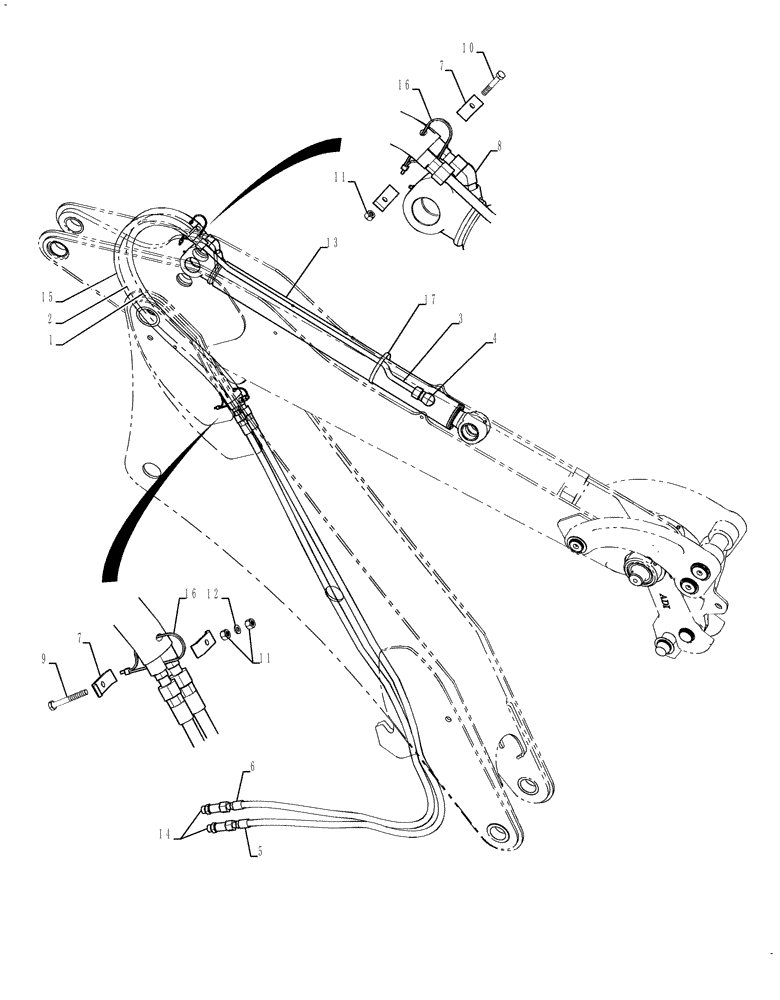

Запчасти Case 580SN WT (35.738.02[01]) - HYDRAULICS - BACKHOE ( 580SN, 580SN WT) (W/O EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS

1

84258633

HYDRAULIC HOSE,16mm ID x 1252mm L

Bucket Head

1шт.

2

84258634

HYDRAULIC HOSE,16mm ID x 1244mm L

Bucket Rod

1шт.

3

84305540

TUBE

Bucket Cylinder Rod

1шт.

4

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

5

84257611

HYDRAULIC HOSE,15.88mm ID x 2755mm L, SAE 100R16

Valve to Bucket Cylinder Head

1шт.

6

84281616

HOSE ASSY.,15.88mm ID x 2800mm L, SAE 100R16

Valve to Bucket Cylinder Rod

1шт.

7

D143846

CLAMP

4шт.

8

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1шт.

9

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

10

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

11

412141

NUT,M10 x 1.5, Cl 8

3шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

13

84210935

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 897.9mm Stroke

Bucket

1шт.

13

84210935R

REMAN-HYD CYLINDER

580SN 58SN01, 580SN WT BOTH TIER 3

1шт.

13

84210935C

CORE-HYD CYLINDER

RETURN NUMBER

1шт.

14

87393627

HYD CONNECTOR

2шт.

15

84321337

SLEEVE,1245mm L

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

16

86982400

SPACER

Hose

1шт.

17

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.
