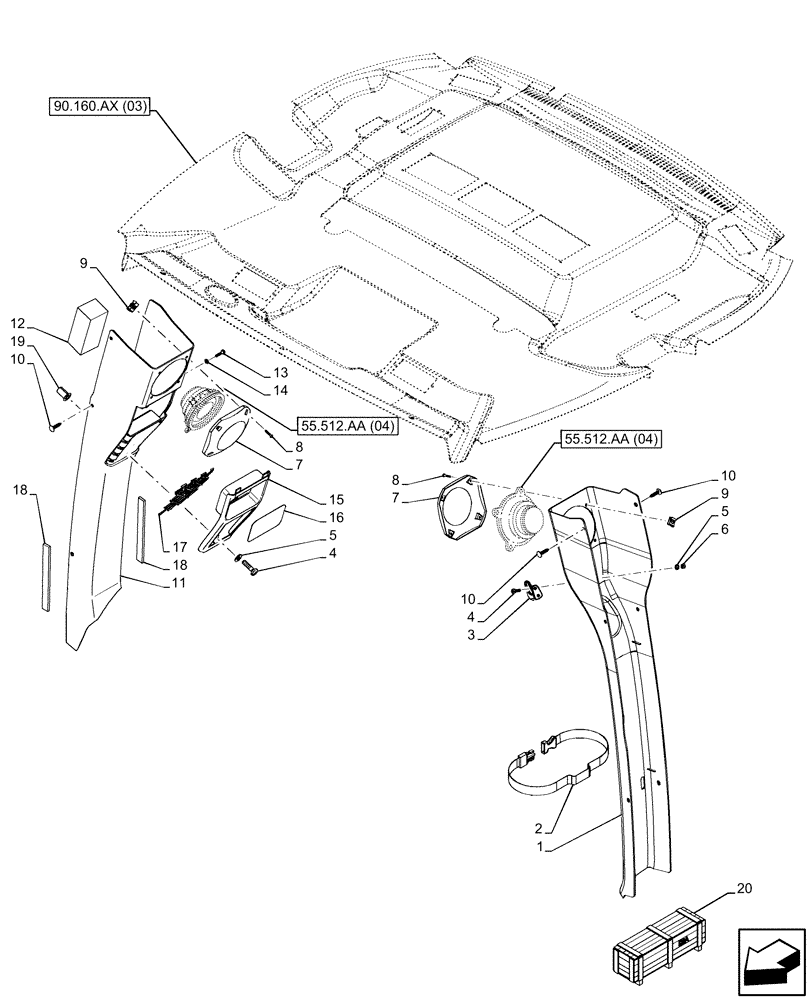

Запчасти Case 580SN WT (90.160.BI[03]) - VAR - 442083 - PILLAR, TRIM, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84397644

COVER

1шт.

2

378227A1

STRAP,500mm L

1шт.

3

114549A1

COAT HOOK

1шт.

4

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

3шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

7

187281A1

COVER

2шт.

8

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

9

177269A1

SPRING NUT,M4.2

8шт.

10

401949A1

FASTENER

10шт.

11

84224373

COVER ASSY

1шт.

12

412285A1

STRIP

1шт.

13

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.

14

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

1шт.

15

84224376

BEZEL

1шт.

16

84224378

DECAL

1шт.

17

84224377

NET

1шт.

18

414939A1

SEAL,200mm L

2шт.

19

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

1шт.

20

47605401

CONSTRUCTION DIA

Deluxe Conversion, Wide, Incl 1, 9, 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
