(55.512.3901) - CONTROLS - LOADER CLAM

Запчасти Case 580SN WT (55.512.3901) - CONTROLS - LOADER CLAM (55) - ELECTRICAL SYSTEMS

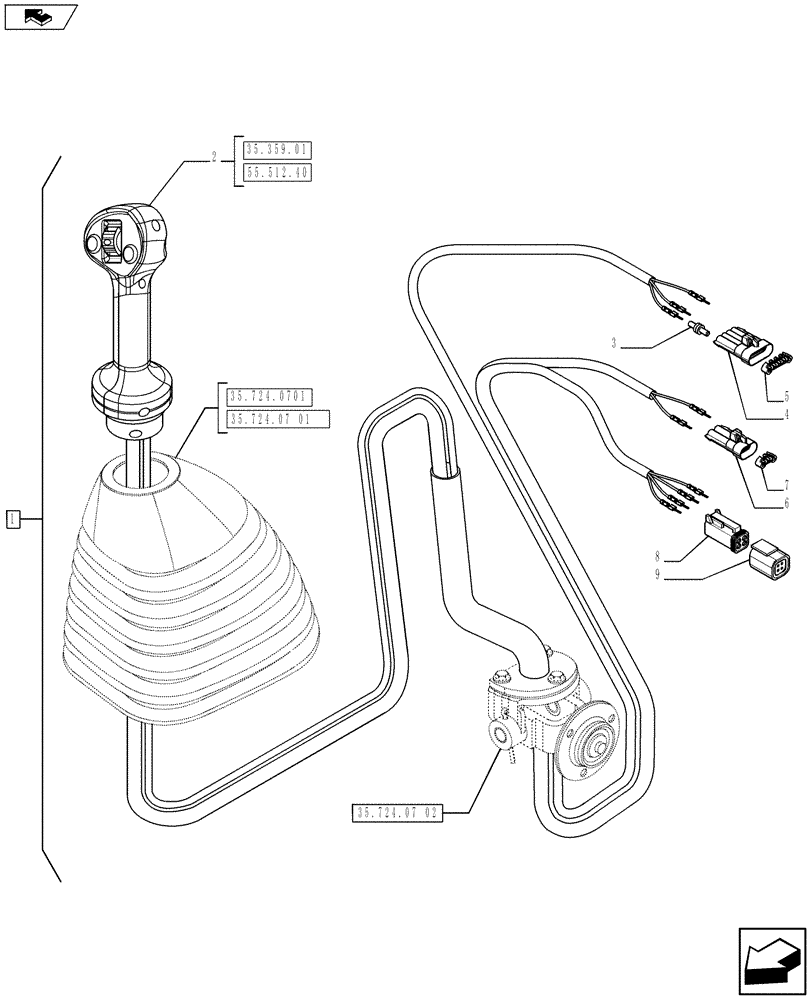

Схема запчастей Case 580SN WT - (55.512.3901) - CONTROLS - LOADER CLAM (55) - ELECTRICAL SYSTEMS
4
6
35.724.07 02
home
35.359.01
2
35.724.07 01
5
7
8
9
1
55.512.40
3
35.724.0701
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87681231

CONTROL

Assy, Incl 2 - 9

1шт.

2

87638047

JOYSTICK

Assy, Loader Control Lever, Two Button, DeClutch and Differential Lock, Prop Roller with Detent; 3 Spool

1шт.

3

298176A1

PLUG

1шт.

4

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

5

258616A1

LOCK

1шт.

6

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

258613A1

LOCK

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

225327C1

WEDGE,Lock, Black

1шт.
