(35.106.360) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES), COMPONENTS

Запчасти Case 590SN (35.106.360) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES), COMPONENTS (35) - HYDRAULIC SYSTEMS

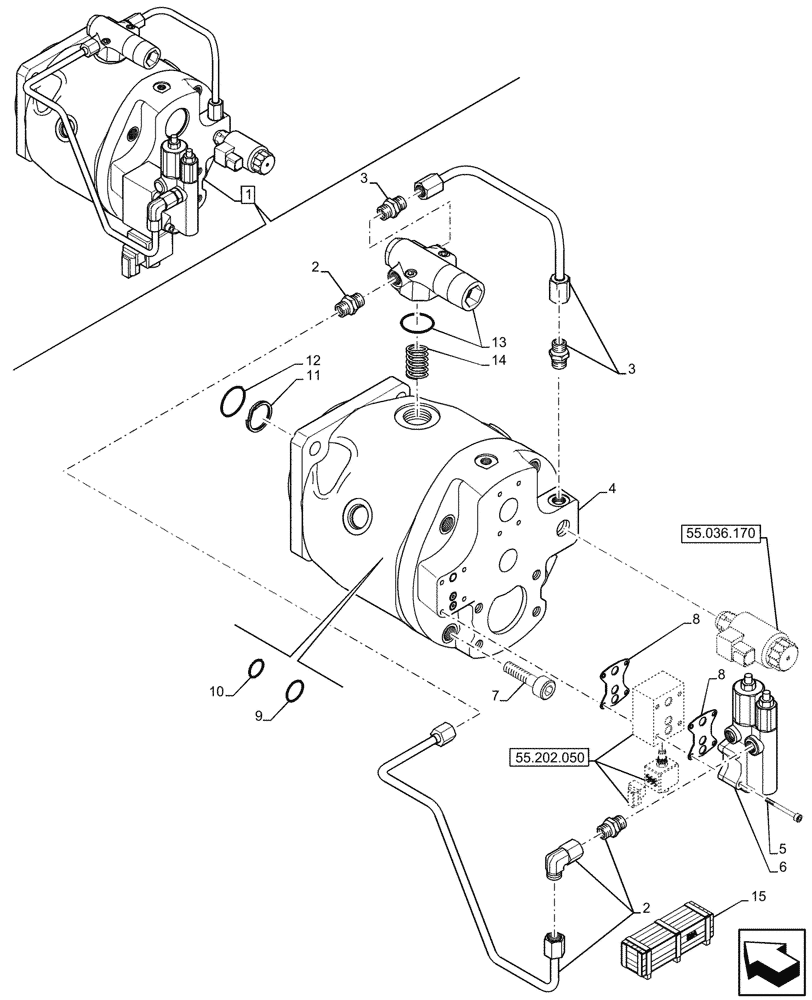

Схема запчастей Case 590SN - (35.106.360) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES), COMPONENTS (35) - HYDRAULIC SYSTEMS
55.202.050
9
3
13
6
7
12
8
3
10
8
1
2
2
11
5
15
14
4
55.036.170
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84545280

HYDRAULIC PUMP,74 CC

ASSY, Incl 2 - 14

1шт.

74cc, Load Sense (LS)

1шт.

See also Hydraulic Pump Components in Figures 55.036.170, 55.202.050

1шт.

2

47369295

REPAIR KIT

Control Tube, Long, Cold Start

1шт.

3

84499592

SERVICE KIT

Control Tube, Short

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

4шт.

6

84311934

CONTROL VALVE

1шт.

7

84312223

HEX SOC SCREW

4шт.

8

84312299

GASKET

2шт.

9

84312210

O-RING

1шт.

10

84312220

O-RING

4шт.

11

84312221

RING

1шт.

12

84312204

SEALING RING

2шт.

13

84311937

CONTROL VALVE

1шт.

14

47822289

SPRING KIT

Torque Control, 74CC

1шт.

15

47825430

CONSTRUCTION DIA

Cold Start Aid, Supplemental, Incl 2, 5, 8

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
