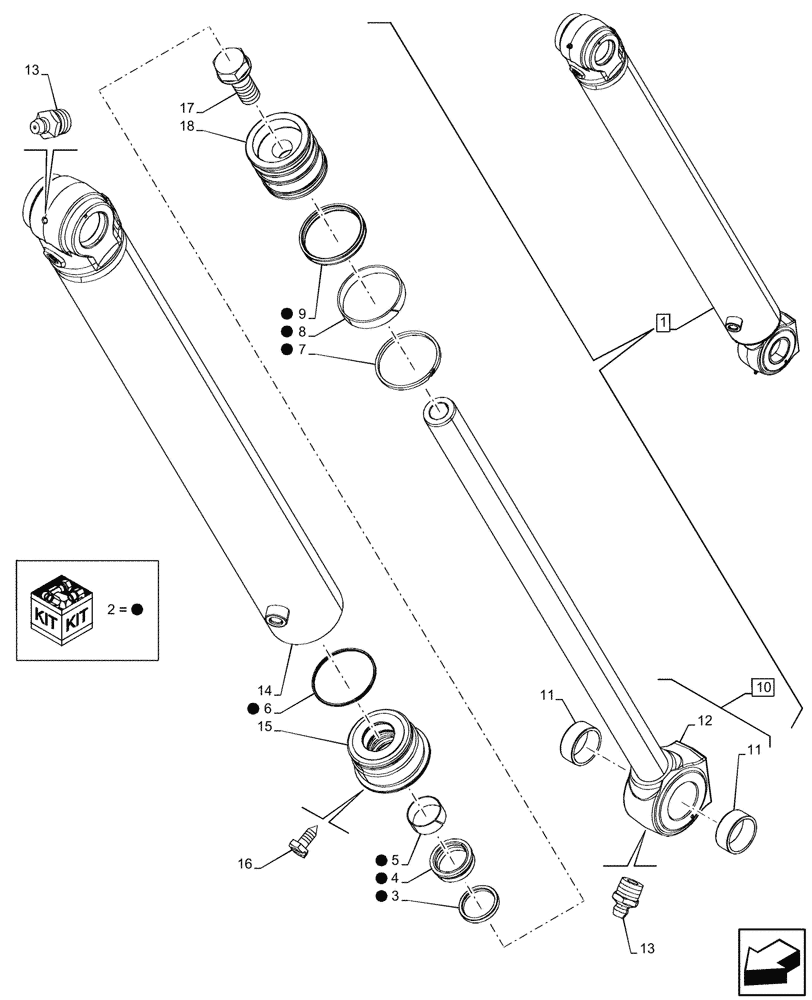

Запчасти Case 590SN (35.736.060) - BACKHOE BOOM CYL. SECTION, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84421589

HYDRAULIC CYLINDER,Double Acting, 69.9mm Rod, 139.7mm Bore, 1030.5 Stroke

ASSY, Grey, Boom, Incl 2 - 18

1шт.

2

84259220

SEAL KIT,69.9mm Rod x 139.7mm Bore

ASSY, Backhoe Boom Cylinder, Incl 3 - 9

1шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

1шт.

4

1542880C1

PACKAGE

1шт.

5

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

1шт.

6

87615487

SEAL

1шт.

7

140968A1

RING,134.22mm ID, Ext

1шт.

8

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

1шт.

9

87715791

SEAL,139.7mm OD

1шт.

10

84233180

ROD,69.9mm OD x 1358.33mm L

ASSY, Incl 11, 12

1шт.

11

D151062

BUSHING,80.19mm ID x 90mm OD x 30mm L

2шт.

12

NSS

NOT SOLD SEPARAT

Rod, Incl in 10

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

84205603

BARREL,139.63mm Bore Dia

1шт.

15

84233185

GLAND,145.58mm Bore, 70.21mm Rod, 86.6mm W

1шт.

16

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

17

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1шт.

18

84233187

PISTON ROD/GLAND

1шт.
