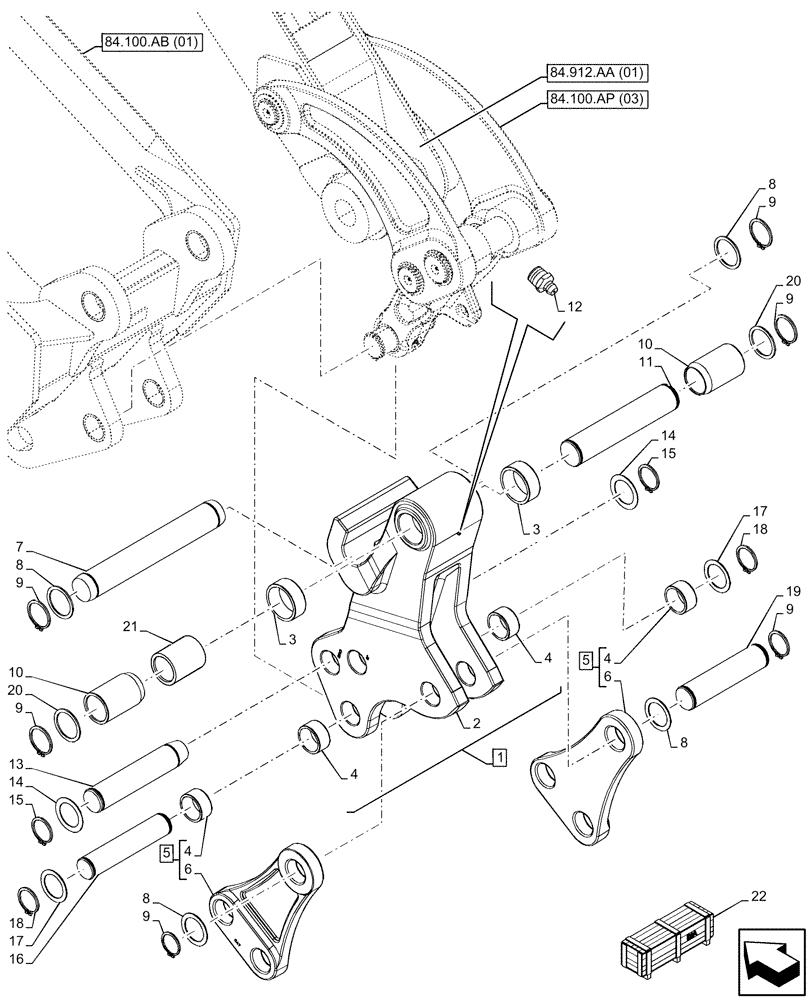

Запчасти Case 590SN (84.100.AP[04]) - VAR - 745162 - BACKHOE BUCKET, UNIVERSAL COUPLER, STANDARD DIPPER (84) - BOOMS, DIPPERS & BUCKETS

1

47733711

LINK

ASSY, Incl 2 - 4 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

4

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

55.19mm ID x 64.98mm OD x 29mm L

4шт.

5

47611990

LINK

ASSY, Incl 4 (Qty 2), 6

2шт.

6

NSS

NOT SOLD SEPARAT

Link, Incl in 5

2шт.

7

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

8

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

6шт.

9

84233536

RING,55mm ID, Ext

6шт.

10

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

11

47674613

PIN,54.9mm OD x 276mm L

Coupler to Dipper

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

14

87613253

WASHER,2.06" ID x 2.94" OD x 0.06" Thk

2шт.

15

87016943

RING, SNAP,50mm ID , Ext

2шт.

16

47621517

PIN,44.9mm OD x 220mm L

Switch Link to Coupler

1шт.

17

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

2шт.

18

84163822

SNAP RING,45mm ID

2шт.

19

47621809

PIN,54.9mm OD x 210mm L

Dump Link to Coupler

1шт.

20

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

2шт.

21

47816273

BUSHING,60.42mm ID x 67mm OD x 54.5mm L

67mm OD x 60.42mm ID x 54.5mm L

1шт.

22

47822051

CONSTRUCTION DIA

Universal Backhoe Coupler (Standard Dipper), Incl 1 - 6, 8, 9, 11, 12, 16 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
