(35.723.0102) - FRONT LOADER HYDRAULIC SYSTEM - BUCKET CYLINDER

Запчасти Case 590SN (35.723.0102) - FRONT LOADER HYDRAULIC SYSTEM - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

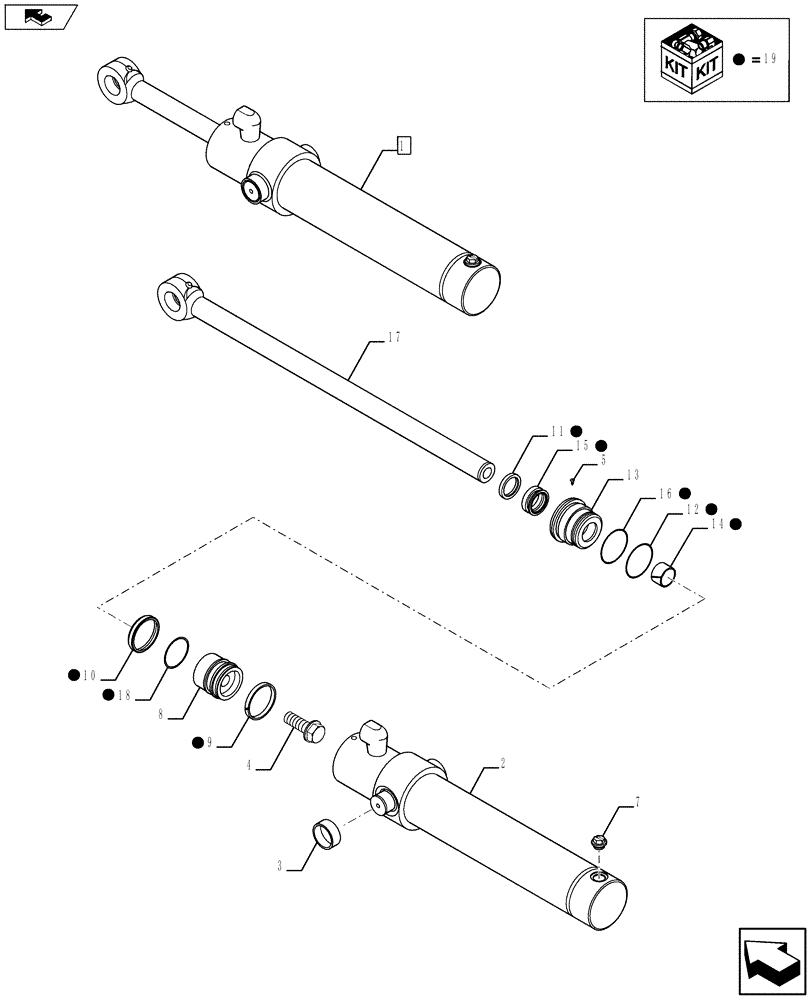

Схема запчастей Case 590SN - (35.723.0102) - FRONT LOADER HYDRAULIC SYSTEM - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS
13
19
17
15
3
19
18
9
7
19
home
16
14
2
19
12
19
19
19
11
19
5
8
4
1
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421602

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 516.5mm Stroke

Assy, Incl 2 - 19

1шт.

2

84208503

TUBE,82.8mm Bore Dia

1шт.

3

84203437

BUSHING,44.94mm ID x 55.07mm OD x 20.25mm L

2шт.

4

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

8

84208518

PISTON ROD/GLAND,82.07mm Bore, 44.55mm Rod, 75.95mm W

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

84208516

GLAND

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

84208508

ROD,44.5mm OD x 727mm L

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

19

84257323

SEAL KIT,44.4mm Rod x 82.6mm Bore

Incl 9 - 12, 14 - 16, 18

1шт.
