(44.511.04) - VAR - 423046 - WHEELS, FRONT - TIRES - 2WD

Запчасти Case 590SN (44.511.04) - VAR - 423046 - WHEELS, FRONT - TIRES - 2WD (44) - WHEELS

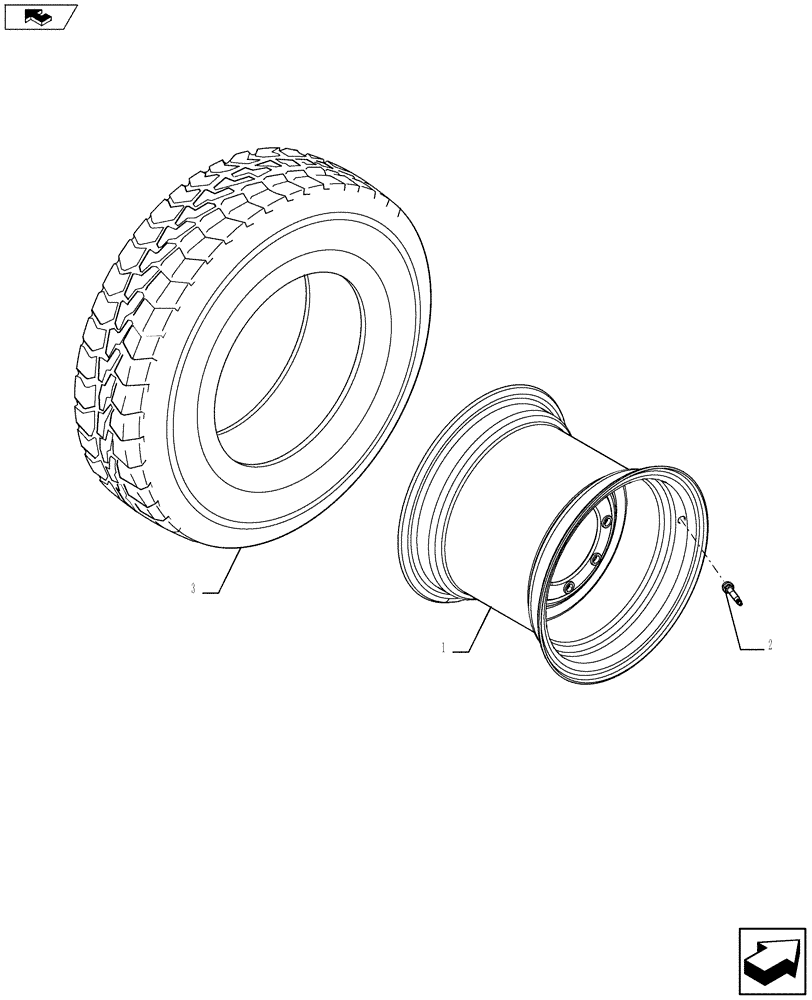

Схема запчастей Case 590SN - (44.511.04) - VAR - 423046 - WHEELS, FRONT - TIRES - 2WD (44) - WHEELS
3
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87599084

WHEEL ASSY,10.5x17.5, 266.8mm W, 8 Holes, CASE Power Tan

10.5 x 17.5

1шт.

2

387897R91

VALVE STEM

1шт.

3

NS

NOT SERVICED

TIRE 14.5/.75 x 16.1 10 PLY, Purchase Locally

1шт.
