(84.100.2204) - VAR - X20039X - BACKHOE BUCKET, COUPLING, MECHANICAL

Запчасти Case 590SN (84.100.2204) - VAR - X20039X - BACKHOE BUCKET, COUPLING, MECHANICAL (84) - BOOMS, DIPPERS & BUCKETS

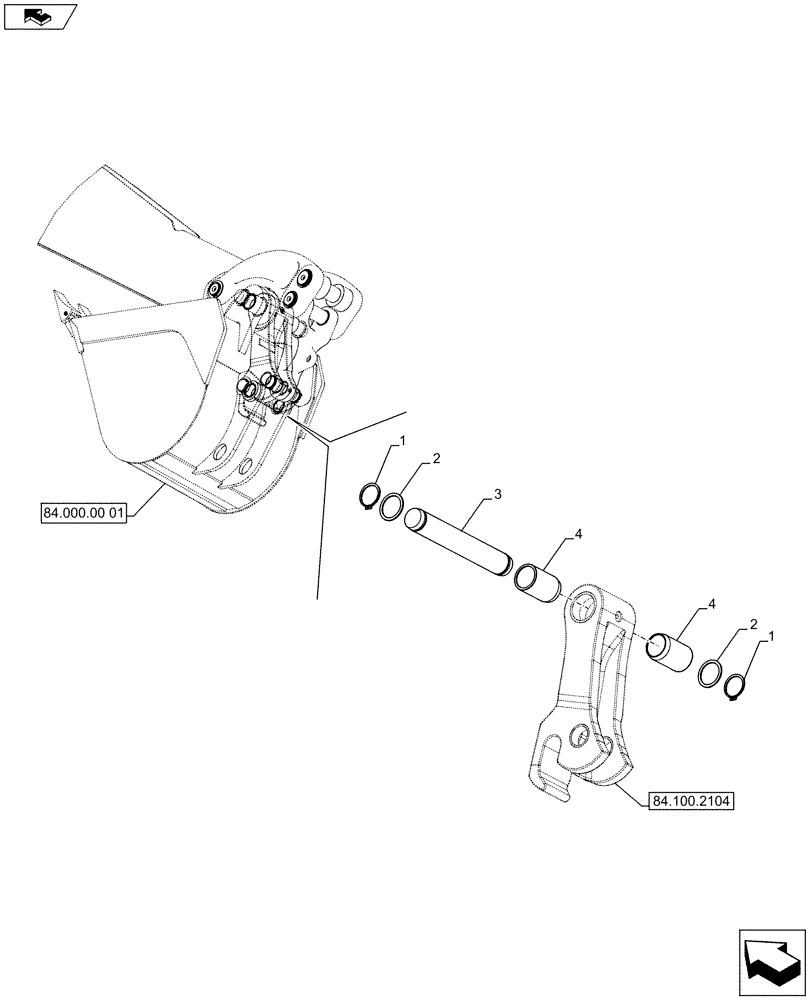

Схема запчастей Case 590SN - (84.100.2204) - VAR - X20039X - BACKHOE BUCKET, COUPLING, MECHANICAL (84) - BOOMS, DIPPERS & BUCKETS
84.100.2104
home
1
2
4
1
4
2
3
84.000.00 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84233536

RING,55mm ID, Ext

2шт.

2

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

3

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

4

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.
