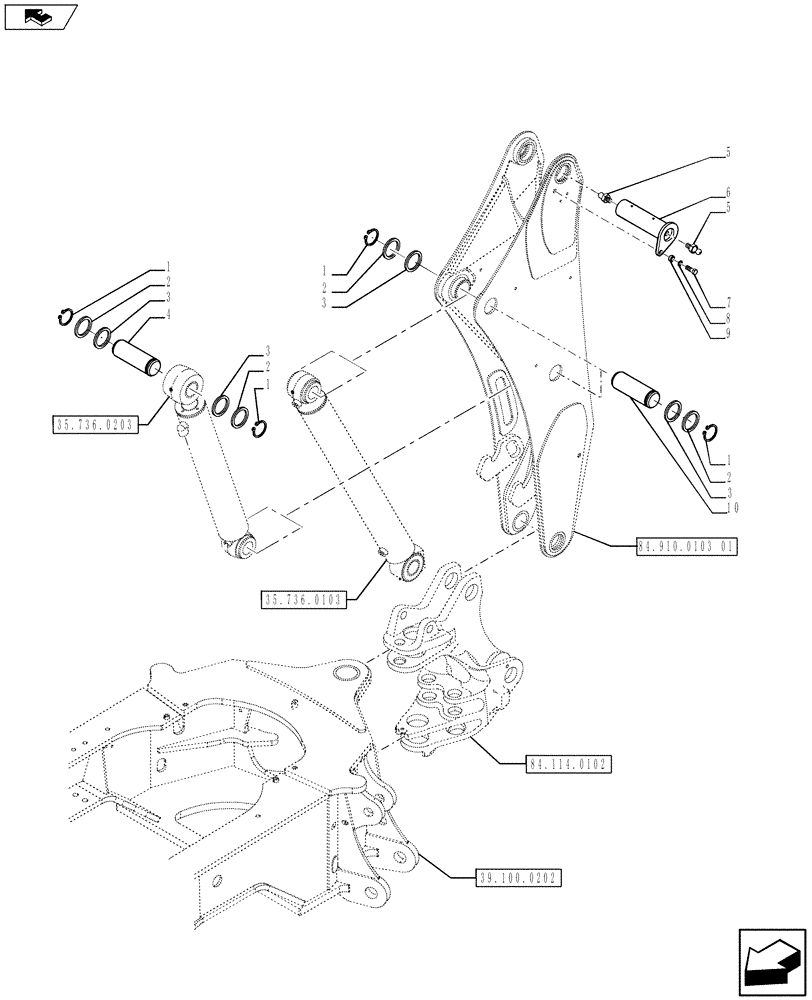

Запчасти Case 590SN (84.910.0103[03]) - BOOM - ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

1

800-40070

SNAP RING,M70 Ext

6шт.

2

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

6шт.

Replace with item 3 if necessary

1шт.

3

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

1шт.

4

84230835

PIN,70mm OD x 192.1mm L

Dipper Cylinder Open End to Dipper

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

84520515

PIN,80mm OD x 342mm L

Boom To Dipper 15 FT BOOM

1шт.

7

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

8

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

9

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

1шт.

10

84230833

PIN,70mm OD x 310.1mm L

Cylinders To Boom

2шт.
