(90.124.AE[01]) - VAR - 745160 - SEAT, AIR SUSPENSION, W/ HEATED CUSHIONS

Запчасти Case 590SN (90.124.AE[01]) - VAR - 745160 - SEAT, AIR SUSPENSION, W/ HEATED CUSHIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

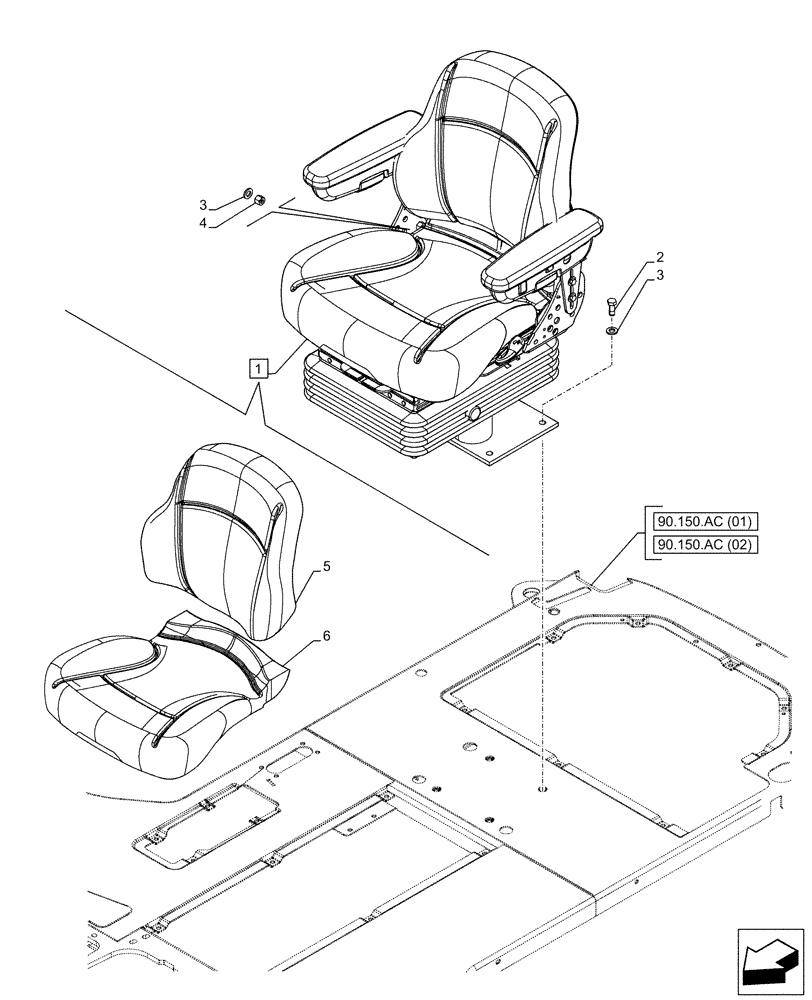

Схема запчастей Case 590SN - (90.124.AE[01]) - VAR - 745160 - SEAT, AIR SUSPENSION, W/ HEATED CUSHIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
2
1
3
4
3
6
5
90.150.ac (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47655507

DRIVER SEAT

Vinyl Wheat, ASSY, Incl 2 - 6

1шт.

See Seat Components also in Figure 90.124.AN (01)

1шт.

2

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

5шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

5

47918778

CUSHION

1шт.

6

47918782

CUSHION

1шт.
