(90.156.AO[02]) - VAR - 747853, 747854, 747855 - CAB, WIDE, RIGHT LATERAL WINDOW, GLASS

Запчасти Case 590SN (90.156.AO[02]) - VAR - 747853, 747854, 747855 - CAB, WIDE, RIGHT LATERAL WINDOW, GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

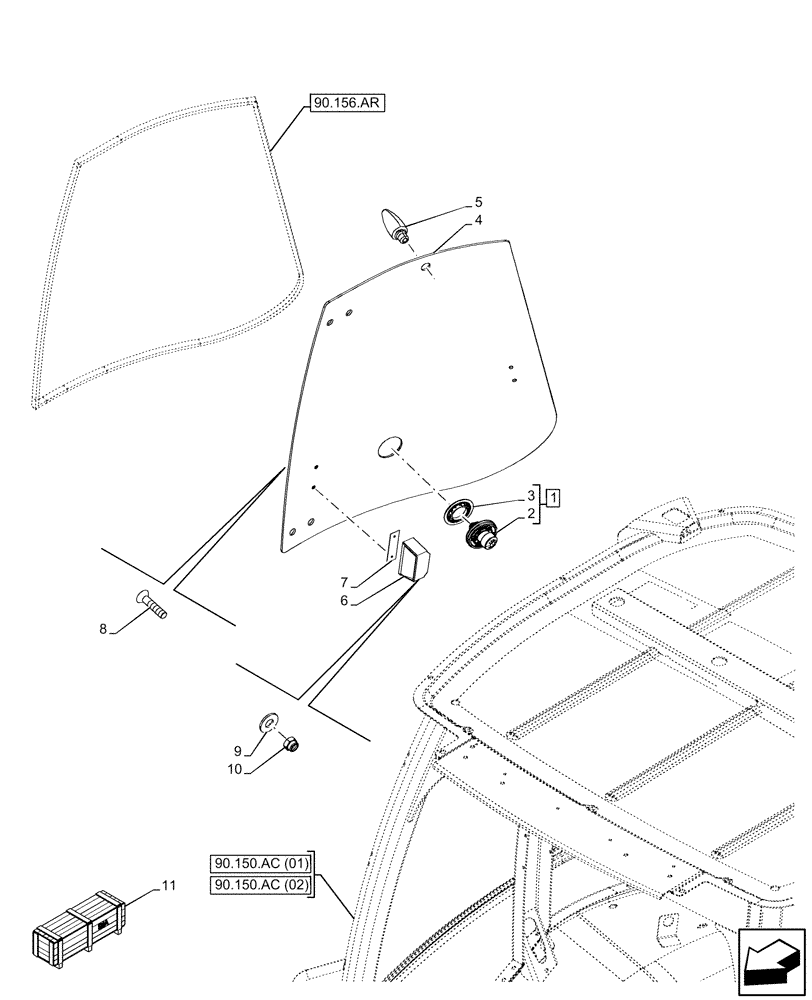

Схема запчастей Case 590SN - (90.156.AO[02]) - VAR - 747853, 747854, 747855 - CAB, WIDE, RIGHT LATERAL WINDOW, GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
8
11
4
1
90.150.ac (02)
2
3
7
90.150.ac (01)
5
6
90.156.ar
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84403979

LATCH

Glass Hold Together, Male, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Latch, Incl in 1

1шт.

3

84355909

RING,85.3mm OD, 44mm ID

1шт.

4

84339225

CAB GLASS ASSY

RH, Rear, Upper

1шт.

5

84224398

BUMPER,6D Durometer EPDM Black

1шт.

6

97399C1

HANDLE

1шт.

7

R54047

PAD,30mm OD x 0.76mm Thk

1шт.

8

47499504

SCREW,Oval HD 10 - 24 x .875"

2шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

10

F45165

SPECIAL NUT,#10-24

2шт.

11

84427154

CONSTRUCTION DIA

Male, DLP Hold Open Latch, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
