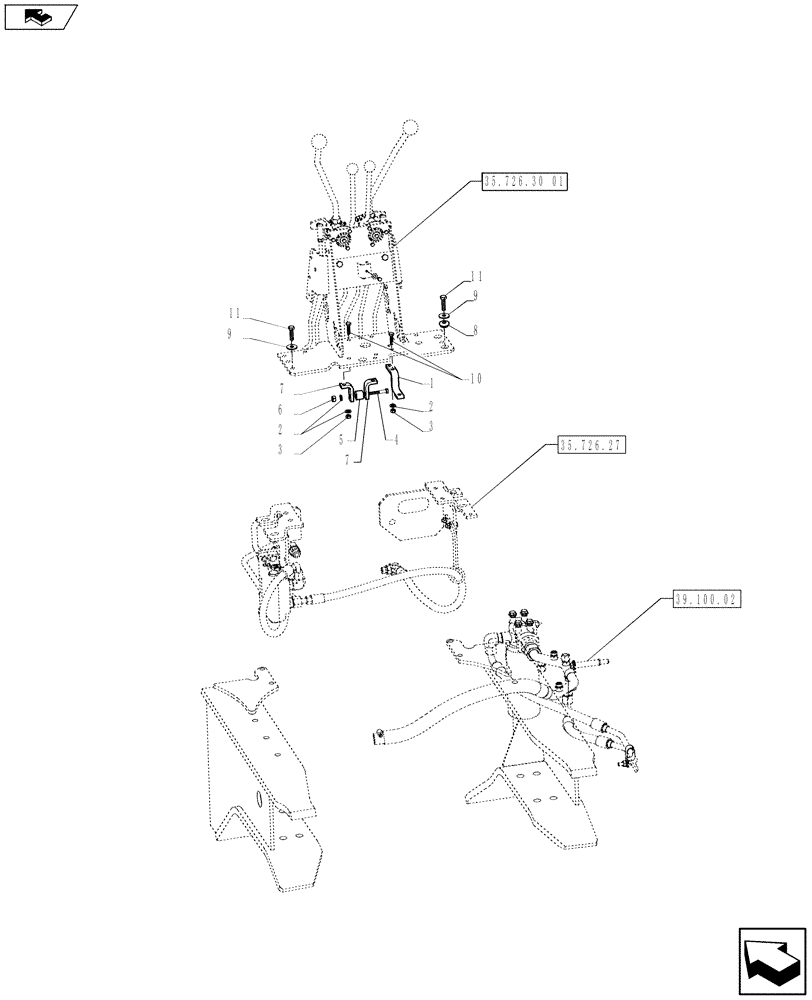

Запчасти Case 590SN (35.726.32) - CONTROL - BACKHOE, 2 LEVER (35) - HYDRAULIC SYSTEMS

1

87449995

BRACKET

1шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

4

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

5

86984547

GUIDE

1шт.

6

830-33010

NUT

2шт.

7

87449996

BRACKET

2шт.

8

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

2шт.

9

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

8шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.
