(35.726.4701) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) - D9006

Запчасти Case 590SN (35.726.4701) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) - D9006 (35) - HYDRAULIC SYSTEMS

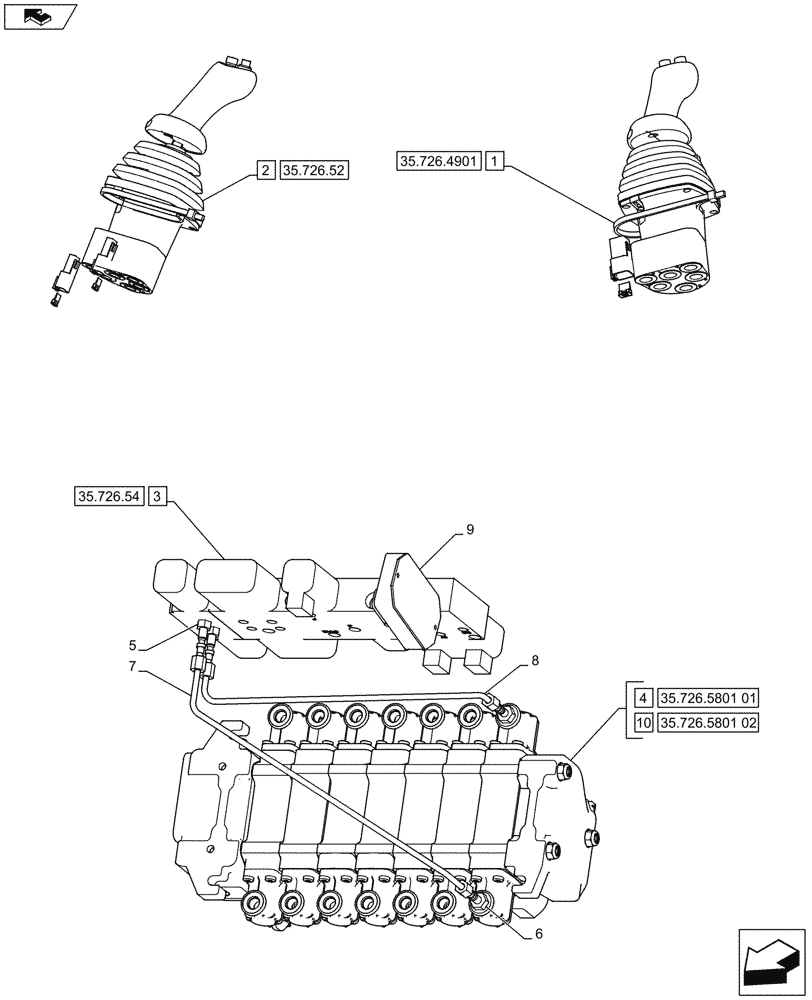

Схема запчастей Case 590SN - (35.726.4701) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/O EXT DIPPER, W/ AUX HYDS) - D9006 (35) - HYDRAULIC SYSTEMS
35.726.4901
7
10
9
2
8
6
3
35.726.5801 01
35.726.5801 02
1
4
5
home
35.726.52
35.726.54
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685956

JOYSTICK

Assy

1шт.

2

87685952

JOYSTICK

Assy

1шт.

3

85827471

HYDRAULIC VALVE

Assy

1шт.

4

84269981

PILOT VALVE

Assy, Serial Range: -C9006

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

7

87438012

HYD TUBE

1шт.

8

87438015

HYD TUBE

1шт.

9

84266025

MODULE

1шт.

10

84551842

CONTROL VALVE

Assy, Start Serial: D9006

1шт.
