(88.035.40[04]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS

Запчасти Case 590SN (88.035.40[04]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES

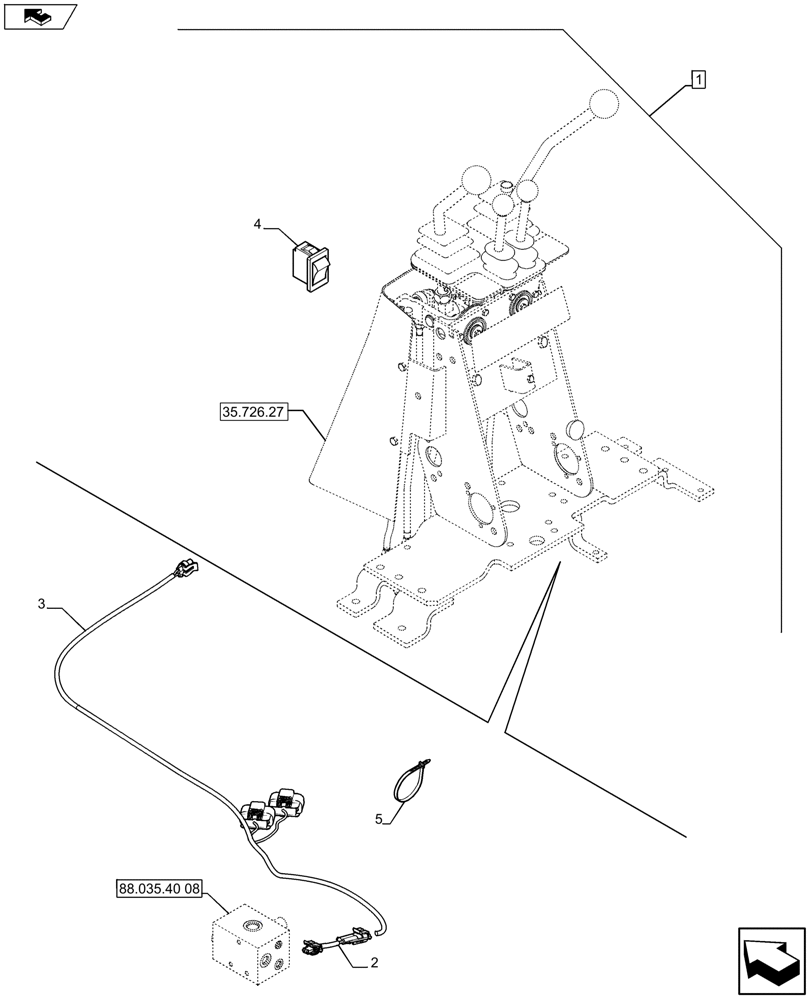

Схема запчастей Case 590SN - (88.035.40[04]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES
3
4
a
1
5
35.726.27
2
home
88.035.40 08
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47360534

CONSTRUCTION DIA

NO AUX TO COMBO, STANDARD, PILOT CONTROLS, Incl 2 -5

1шт.

See Ref. 88.035.40 [01] to 88.035.40 [03], 88.035.40 [05] to 88.035.40 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292393

WIRE HARNESS

Combo AUX, Pilot Control, Hammer

1шт.

4

84241093

SWITCH

Bi - Dir Uni - Dir Selector

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
