(88.035.54[04]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE

Запчасти Case 590SN (88.035.54[04]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES

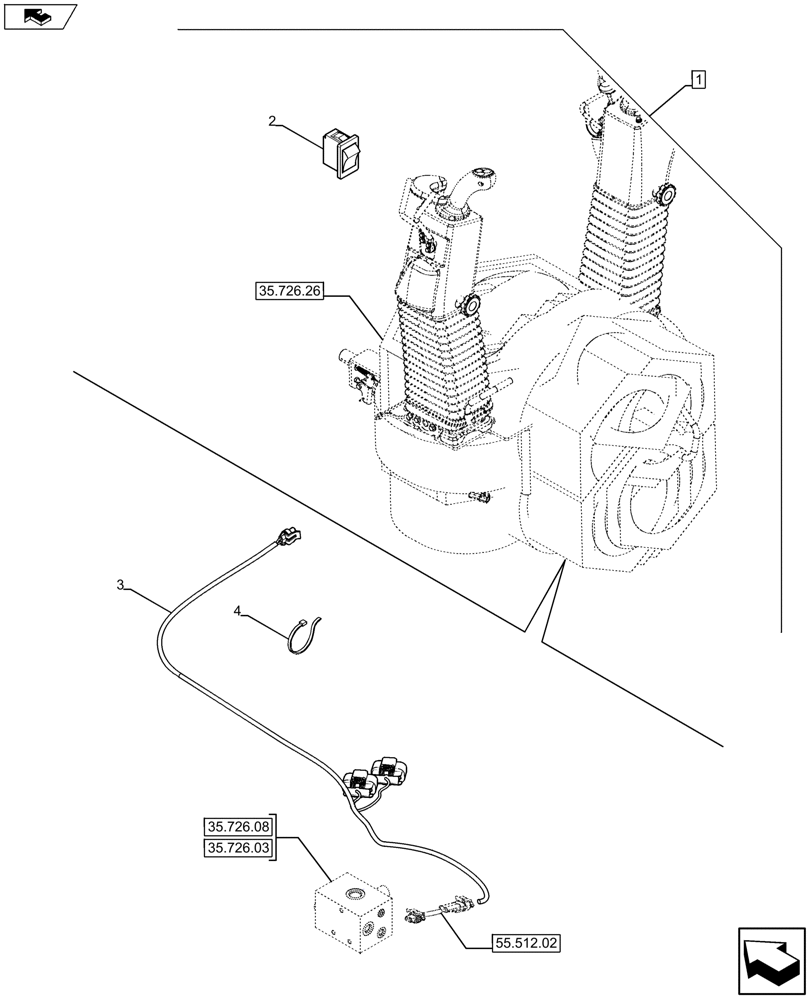

Схема запчастей Case 590SN - (88.035.54[04]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES
35.726.26
1
a
35.726.03
3
2
home
35.726.08
55.512.02
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527084

CONSTRUCTION DIA

Uni-Aux to Combo Aux, Pilot, Extendable Hoe, Incl 2 - 4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.54 [01] to 88.035.54 [03], 88.035.54 [05] to 88.035.54 [06]

1шт.

2

84241093

SWITCH

1шт.

3

84292393

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
