(88.035.56[01]) - DIA KIT, 3 SPOOL VALVE SECTIONS, TIE RODS

Запчасти Case 590SN (88.035.56[01]) - DIA KIT, 3 SPOOL VALVE SECTIONS, TIE RODS (88) - ACCESSORIES

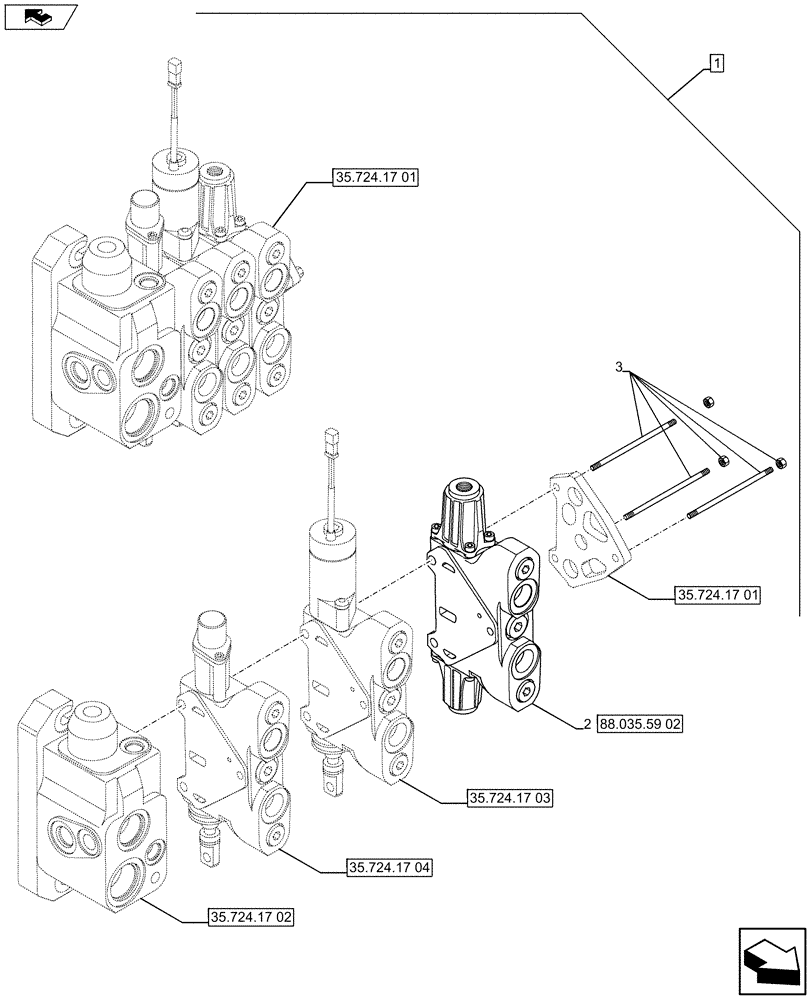

Схема запчастей Case 590SN - (88.035.56[01]) - DIA KIT, 3 SPOOL VALVE SECTIONS, TIE RODS (88) - ACCESSORIES
2
35.724.17 04
35.724.17 01
35.724.17 02
88.035.59 02
35.724.17 03
35.724.17 01
1
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84484679

SERVICE KIT

3 Spool Valve Sections, Tie Rods, Incl 2 - 3

1шт.

See Ref. 88.035.56 [02]

1шт.

2

84295102

HYD VALVE SECTION

1шт.

3

85825474

THREADED TIE-ROD,M10 x 193mm L

1шт.
