(88.055.01[02]) - DIA KIT, GRID HEATER INSTALLATION

Запчасти Case 590SN (88.055.01[02]) - DIA KIT, GRID HEATER INSTALLATION (88) - ACCESSORIES

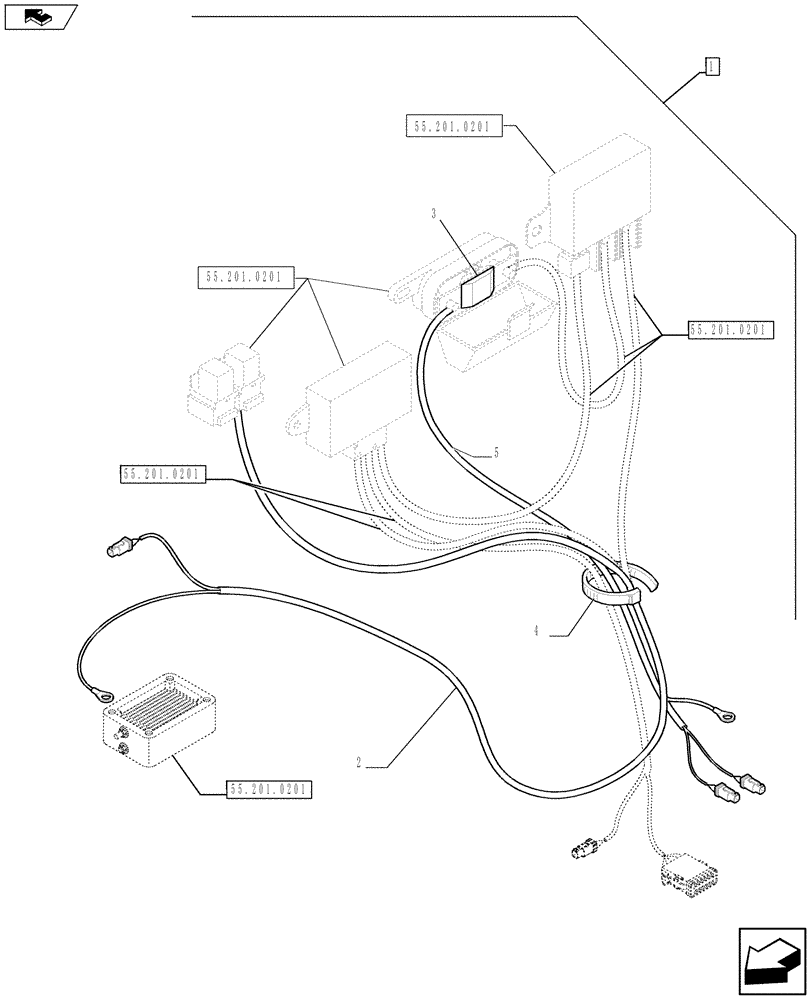

Схема запчастей Case 590SN - (88.055.01[02]) - DIA KIT, GRID HEATER INSTALLATION (88) - ACCESSORIES
5
55.201.0201
home
3
4
55.201.0201
1
2
55.201.0201
55.201.0201
55.201.0201
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87732181

SERVICE KIT

Gid Heater Installation, Incl 2 - 5, Serial Range: -`0

1шт.

See Ref. 88.055.01 [01], 88.055.01 [03] to 88.055.01 [04]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87608352

WIRE HARNESS

1шт.

3

87410265

BAR

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

5

87419615

CABLE ASSY.

1шт.
