(88.055.05) - DIA KIT, UNI-AUX PILOT, SERVICE

Запчасти Case 590SN (88.055.05) - DIA KIT, UNI-AUX PILOT, SERVICE (88) - ACCESSORIES

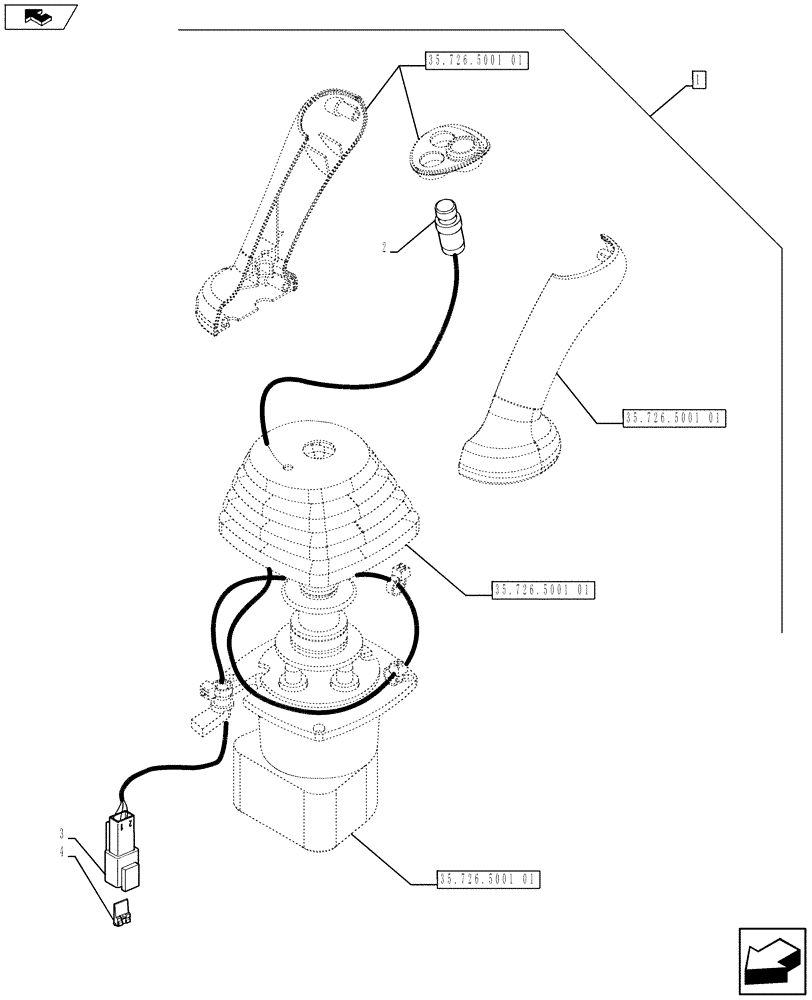

Схема запчастей Case 590SN - (88.055.05) - DIA KIT, UNI-AUX PILOT, SERVICE (88) - ACCESSORIES
1
4
35.726.5001 01
35.726.5001 01
3
35.726.5001 01
35.726.5001 01
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84412151

SERVICE KIT

Uni-Aux Pilot, Service, Incl 2 - 4

1шт.

2

87437373

SWITCH ASSY

Push Button Uni-Directional Aux Hydraulic

1шт.

3

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

4

225318C1

ELEC CONNECTOR,2 Pin

2шт.
