(88.090.10[01]) - DIA KIT, DLX CONV - WIDE

Запчасти Case 590SN (88.090.10[01]) - DIA KIT, DLX CONV - WIDE (88) - ACCESSORIES

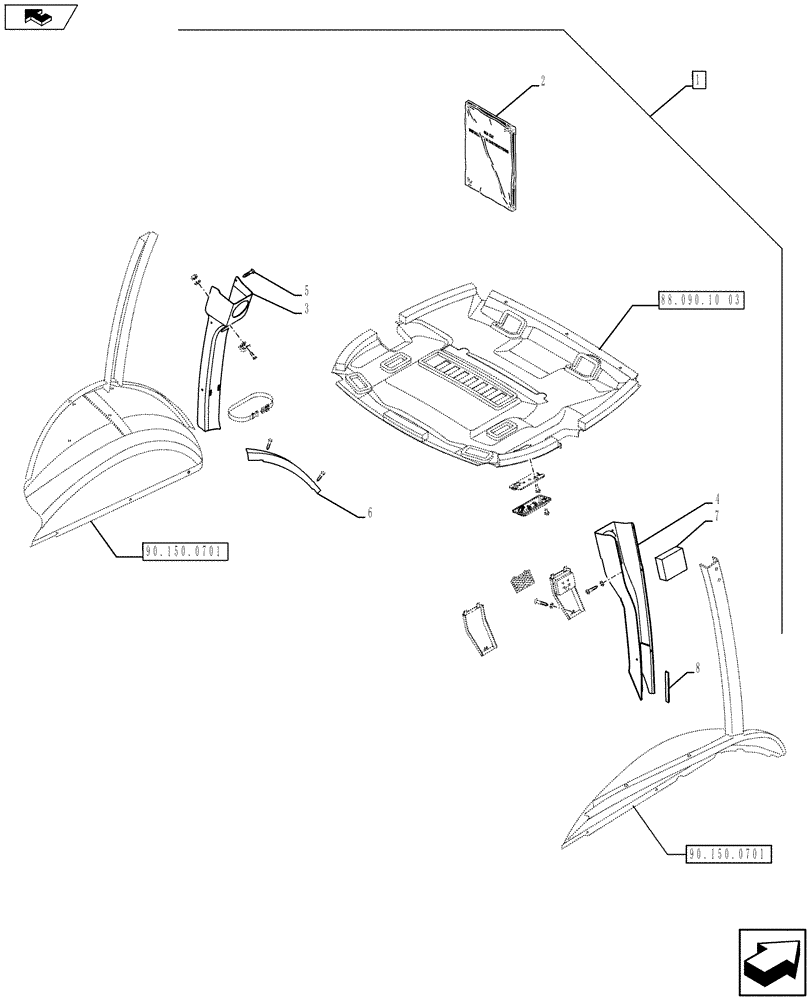

Схема запчастей Case 590SN - (88.090.10[01]) - DIA KIT, DLX CONV - WIDE (88) - ACCESSORIES
1
4
6
90.150.0701
5
8
90.150.0701
88.090.10 03
2
7
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84482544

KIT

DLX CONV - Wide, Incl 2 - 8, Serial Range: -`0

1шт.

See Ref. 88.090.10 [02] to 88.090.10 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84482560

INSTRUCTION

1шт.

3

84397644

COVER

1шт.

4

84224375

COVER ASSY

1шт.

5

401949A1

FASTENER

10шт.

6

397774A3

STRIP

1шт.

7

412285A1

STRIP

1шт.

8

414939A1

SEAL,200mm L

2шт.
