(88.090.11[02]) - DIA KIT, CANOPY CONVERSION WIDE -DLX

Запчасти Case 590SN (88.090.11[02]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES

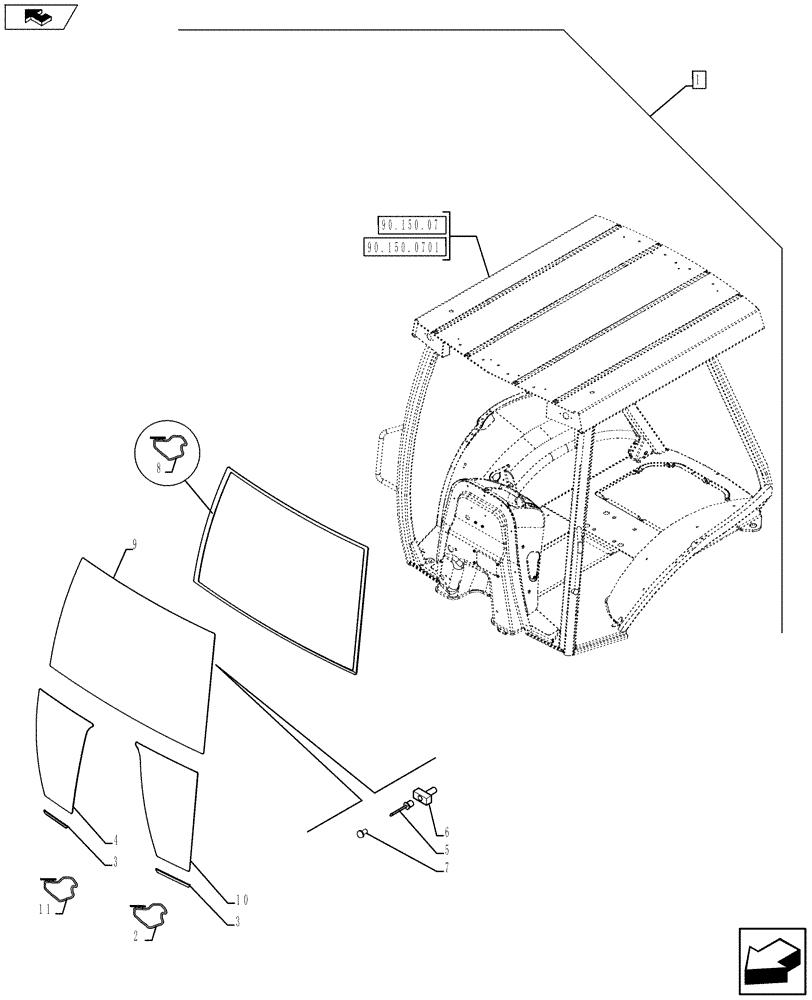

Схема запчастей Case 590SN - (88.090.11[02]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES
3
4
home
90.150.0701
6
90.150.07
7
3
9
2
5
8
10
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84410617

KIT

Canopy Conversion Wide - DLX, Incl 2 - 11, Serial Range: -`0

1шт.

See Ref. 88.090.11 [01], 88.090.11 [03] to 88.090.11 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

395795A1

TAPE

1шт.

3

395793A1

PROTECTION STRIP

2шт.

4

84246308

CAB GLASS ASSY

1шт.

5

151-516

RIVET,Pop, 1/8" x .775"

2шт.

6

279482A1

CLAMP

2шт.

7

391827A1

SPACER,11.1mm D

18шт.

8

87495298

ADHESIVE

1276шт.

9

84246306

GLASS

1шт.

10

84246307

CAB GLASS ASSY

1шт.

11

349-152

ADHESIVE

50шт.
