(9-18) - SUSPENSION SEAT - BOSTROM

Запчасти Case 380B (9-18) - SUSPENSION SEAT - BOSTROM (09) - CHASSIS

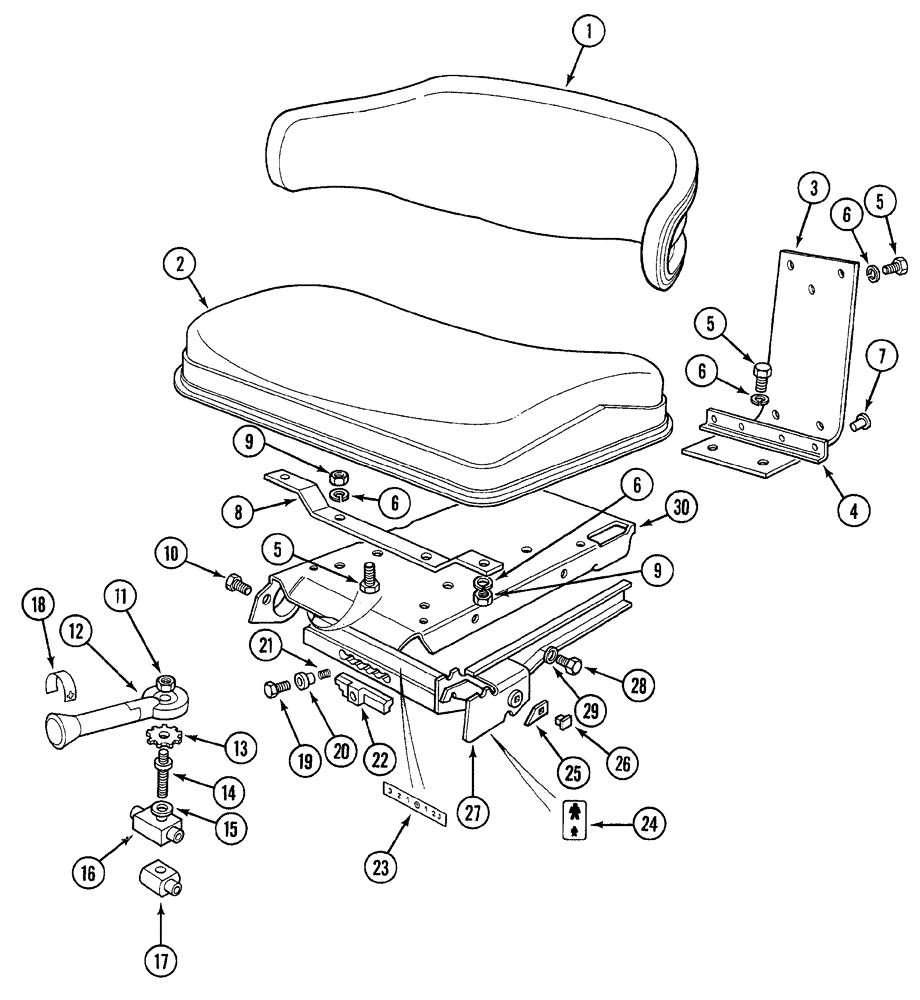

Схема запчастей Case 380B - (9-18) - SUSPENSION SEAT - BOSTROM (09) - CHASSIS
9
21
5
19
30
2
15
20
6
27
4
22
11
29
3
6
25
17
7
9
24
14
16
6
10
26
1
6
23
8
18
5
28
5
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1536395C1

SEAT

ASSEMBLY - PVC covered, with 2 inch seat belt

1шт.

537339R1

SAFETY BELT

2" (See Figure 9-24)

1шт.

3121421R92

SEAT

deluxe suspension (PVC)

1шт.

1

3123336R1

BACKREST

CUSHION ASSEMBLY (PVC)

1шт.

2

3123332R1

CUSHION, SEAT

ASSEMBLY (PVC)

1шт.

3

3123331R2

SUPPORT

seat back

1шт.

4

3125164R1

BRACKET

seat

1шт.

5

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

9шт.

6

112723

LOCK WASHER,5/16"

11шт.

7

3125163R1

RIVET

pop

4шт.

8

3123334R1

SUPPORT

BRACKET - seat tilt

1шт.

9

934109R1

NUT

hex, 4 mm

4шт.

10

3123312R1

SCREW

taptite, 8 mm - 1.25 x 16 mm

1шт.

11

3123326R1

NUT

clamp

1шт.

12

3123327R1

HANDLE

ASSEMBLY - weight adjusting

1шт.

13

538570R1

GEAR

weight adjusting

1шт.

14

3123325R1

BOLT

adjuster

1шт.

15

3123322R1

THRUST WASHER

1шт.

16

3123323R1

TRUNNION

adjuster (Large)

1шт.

17

3123324R1

TRUNNION

adjuster (Small)

1шт.

18

3220518R1

PRODUCT GRAPHIC

DECAL -(+/-)

1шт.

19

3220548R1

SCREW

BOLT - hex, 6 mm - 1.00 x 25 mm

1шт.

20

3123309R1

BUTTON

KNOB - pull

1шт.

21

3220537R1

SPRING

slider

1шт.

22

3123307R1

SLIDE

seat adjusting

1шт.

23

3220526R1

DECAL

indicator

1шт.

24

3123311R1

DECAL

descriptive

1шт.

25

3220525R1

INDICATOR

adjusting

1шт.

26

538695R1

PLUG

end

1шт.

27

3123314R1

SHROUD ASSY.

right

1шт.

28

3123317R1

BOLT

seat

2шт.

29

933965R1

LOCK WASHER,M10

2шт.

30

3123313R1

SEAT PLATE

top

1шт.

3220555R1

RETAINER

CLIP - (Not illustrated)

2шт.
