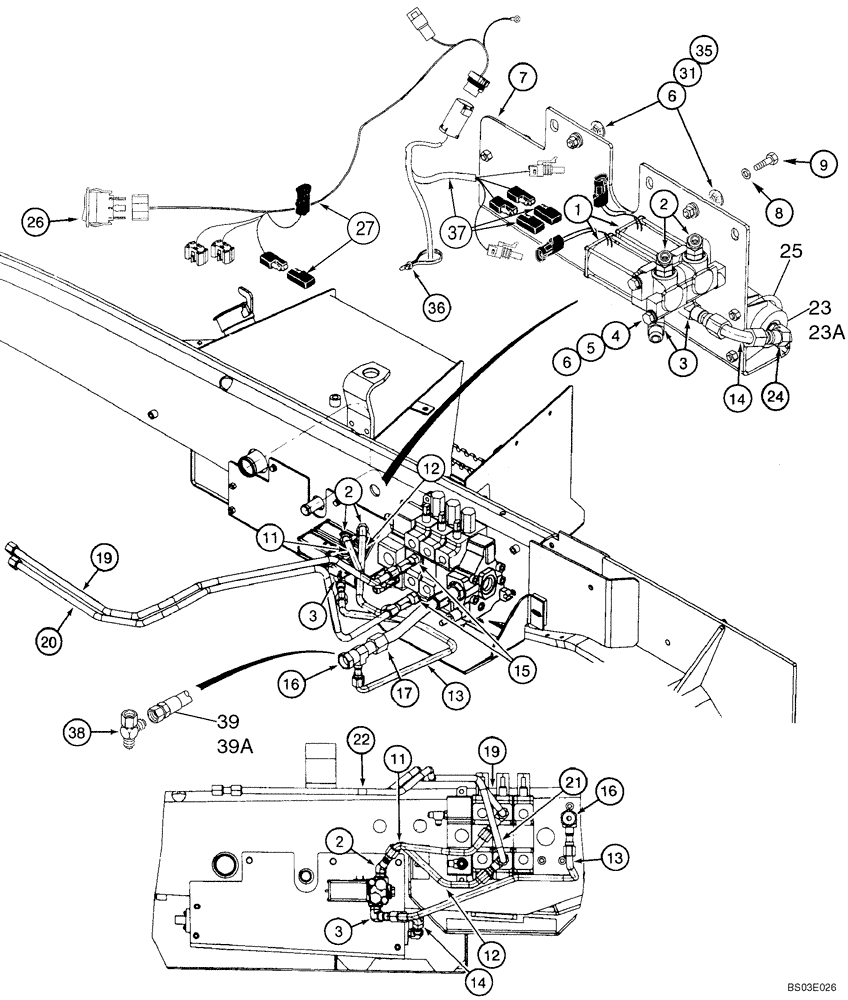

Запчасти Case 570MXT (08-07) - HYDRAULICS - RIDE CONTROL (297977A4 SOLENOID VALVE) (08) - HYDRAULICS

1

297977A4

SOLENOID VALVE

Ride Control; Incl. Two Valves; Incl. 313310A1, 391138A1, 392401A1; Replaces 297977A3; If Used

1шт.

434560A1

KIT

Service Upgrade For 297977A3 Solenoid Valve; Incl. (2) Valves: If Used

1шт.

313310A1

GASKET KIT

Seal; Incl. (4) O-rings Which Are Not Serviced Separately; (One Kit Per Valve)

2шт.

391138A1

KIT

Incl. (1) Poppet, (2) Springs, (1) Guide Tube and Case Assembly Which Are Not Serviced Separately; Incl. 392401A1

2шт.

392401A1

COIL

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 3A

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

278169A1

PLATE

1шт.

8

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thk

2шт.

9

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

11

240709A4

TUBE

Left-Hand Solenoid Valve Upper Port To Tee At Loader Valve Upper Lift Section

1шт.

12

377997A1

TUBE

Right-Hand Solenoid Valve Upper Port To Tee At Loader Valve Lower Lift Section

1шт.

13

240706A2

TUBE

To Tee At Filter; Models With Ride Control, But Without Hydraulic Tool Quick Coupler, See Ref 39 For Models With Both

1шт.

14

240703A2

TUBE,15.88 mm OD

Accumulator To Right-Hand Solenoid Valve Lower Port

1шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

Attaches To Tees At Loader Valve Lift Section; For Tees At Loader Valve Lift Section, See Figure 08-03

2шт.

16

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

To Tee At Filter; See Figure 08-02

1шт.

17

230078A2

HOSE

415 mm (16-3/8 in); Ldr Valve to Filter; Used On Rear Counterweight Units With Ride Control and/or Loader Tool Coupler; Used On Three-Point Hitch Units Without Ride Control and Loader Tool Coupler With Three Spool Loader Valve

1шт.

17

238565A2

HOSE

383 mm (15-1/8 in); Loader Valve to Filter; Used On Three Point Hitch Units With Ride Control and/or Loader Tool Coupler

1шт.

17

144227A2

HOSE,19.05mm ID x 472mm L

472 mm (18-19/32 in); Loader Valve to Filter; Used on Rear Counterweight Units Without Ride Control and/or Loader Tool Coupler; Used On Three-Point Hitch Units Without Ride Control and Loader Tool Coupler With Two Spool Loader Valve

1шт.

19

230072A1

TUBE

Replaces Existing Tube At Loader Valve Upper Lift Port To Left-Hand Loader Lift Cylinder Rod End, See Figure 08-03

1шт.

20

230073A1

TUBE

Replaces Existing Tube At Loader Valve Lower Lift Port To Left-Hand Loader Lift Cylinder Closed End, See Figure 08-03

1шт.

23

448284A1

ACCUMULATOR,275 Bar

Component Parts Not Serviced Separately; Used In Production, For Service Order 234412A1, REF 23

1шт.

23a

234412A1

ACCUMULATOR,0.98L

Ride Control; See Figure 08-30

1шт.

24

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl. 24A

1шт.

24a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Illustrated

1шт.

25

A13240

CLAMP,2-5/8" ID

Two Piece; Incl. Hardware

2шт.

26

235002A1

ROCKER SWITCH

Ride Control

1шт.

27

400623A2

HARNESS

Side Console Options; Incl. (1) L71879

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

32

121413A1

FUSE,15A, Mini, Blue

Not Illustrated

1шт.

35

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

37

400624A3

HARNESS

Chassis Options; Incl. (2) L71879

1шт.

38

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

Models With Both Ride Control and Hydraulic Tool Quick Coupler

1шт.

39

293037A1

TUBE,15.88 mm OD, 485, 374 mm Length

374 mm(14-23/32 in); Left-Hand Solenoid Valve Lower Port To Tee At Filter; Models With Both Ride Control and Hydraulic Tool Quick Coupler

1шт.

39a

87416314

TUBE,.625" OD

442 mm (17-13/32 in); Left-Hand Solenoid Valve Lower Port To Tee At Filter; Models With Both Ride Control and Hydraulic Tool Quick Coupler; Replaces 293037A1; If Used

1шт.
