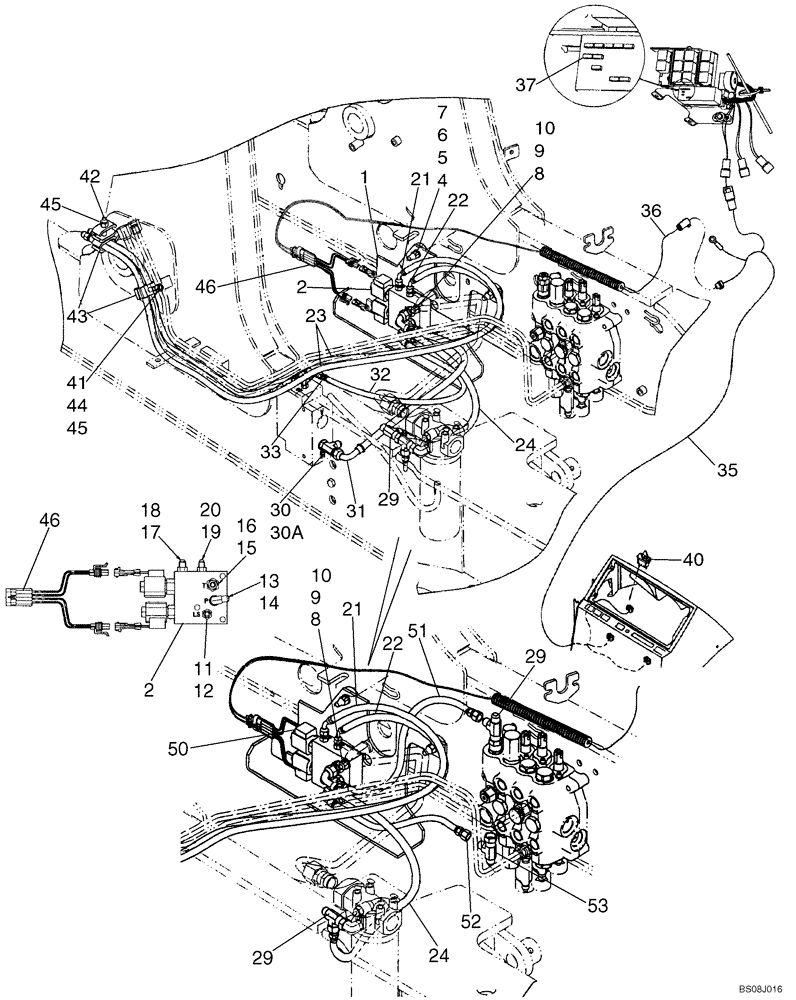

Запчасти Case 570MXT (08-08A) - HYDRAULICS - COUPLER, LOADER TOOL QUICK (MODELS WITH HUSCO LOADER VALVE) (08) - HYDRAULICS

1

87482496

MOUNTING PLATE

Replaces 86993692

1шт.

2

386988A3

SOLENOID VALVE

Four-Way; Two Position; Incl. 396695A1, 396696A1; Used On Models With Separate Flow Divider/Priority Valve

1шт.

396695A1

KIT

Seal; Incl. (10) O-Rings and (2) Cartridge Seal Kits Which Are Not Serviced Separately

1шт.

396696A1

KIT

Coil

1шт.

4

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

3шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

Incl. 18

1шт.

18

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

387954A2

HOSE ASSY.

2677 mm (105-13/32 in); Solenoid Valve Lower Port; For Attaching Parts, See Figure 08-09

1шт.

22

387953A1

HOSE ASSY.

2677 mm (105-13/32 in); Solenoid Valve Upper Port; For Attaching Parts, See Figure 08-09

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

7шт.

24

87454402

HOSE ASSY.,3/8" ID x 980mm L, Flex-Pak 2

980 mm (38-19/32 in); Return

1шт.

29

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1-2шт.

30

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 30A; Used On Models With Separate Flow Divider/Priority Valve

1шт.

30a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

87454056

HOSE ASSY.

970 mm (38-3/16 in); Pressure; Used On Models With Separate Flow Divider/Priority Valve

1шт.

32

87454057

HOSE ASSY.

1075 mm (42-11/32 in); Load Sense; Used On Models With Separate Flow Divider/Priority Valve

1шт.

87454471

HOSE PROTECTION

SLEEVE; Used With Ref 24, 31, 32 Hoses

1шт.

33

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

Used On Models With Separate Flow Divider/Priority Valve

1шт.

35

400623A2

HARNESS

Side Console Options

1шт.

36

87452518

WIRE HARNESS

Chassis Options

1шт.

37

121413A1

FUSE,15A, Mini, Blue

1шт.

40

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler

1шт.

41

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

Used With (1) 892-11010 Lock Washer, (1) 896-11010 Flat Washer; Replaces 814-10070 M10 x 70 Bolt Used On Models Without Washers

1шт.

42

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

43

D138055

CLAMP

6шт.

44

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

45

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

46

87482865

WIRE HARNESS

Quick Coupler Jumper

1шт.

REF

INSTRUCTION

USED ON MODELS WITH BUILT-IN PRIORITY VALVE; THEREFORE, MODELS WITHOUT SEPARATE FLOW DIVIDER/PRIORITY VALVE

1шт.

50

87435909

SOLENOID VALVE

Coupler; See Figure 08-09A; Models With Built-In Priority Valve; Therefore, Models Without Separate Flow Divider/Priority Valve

1шт.

51

87323354

HOSE ASSY.

700 mm (27-9/16 in); Coupler Pressure; Models With Built-In Priority Valve; Therefore, Models Without Separate Flow Divider/Priority Valve

1шт.

52

87323355

HOSE ASSY.

600 mm (23-5/8 in); Coupler Load Sense; Models With Built-In Priority Valve; Therefore, Models Without Separate Flow Divider/Priority Valve

1шт.

53

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models WBuilt-In Priority Valve; Therefore, Models W/O Separate Flow Divider/Priority Valve; If Used

1шт.

53

218-5491

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run x 9/16"-18

Models W/Built-In Priority Valve; Therefore, Models W/O Separate Flow Divider/Priority Valve; If Used

1шт.
