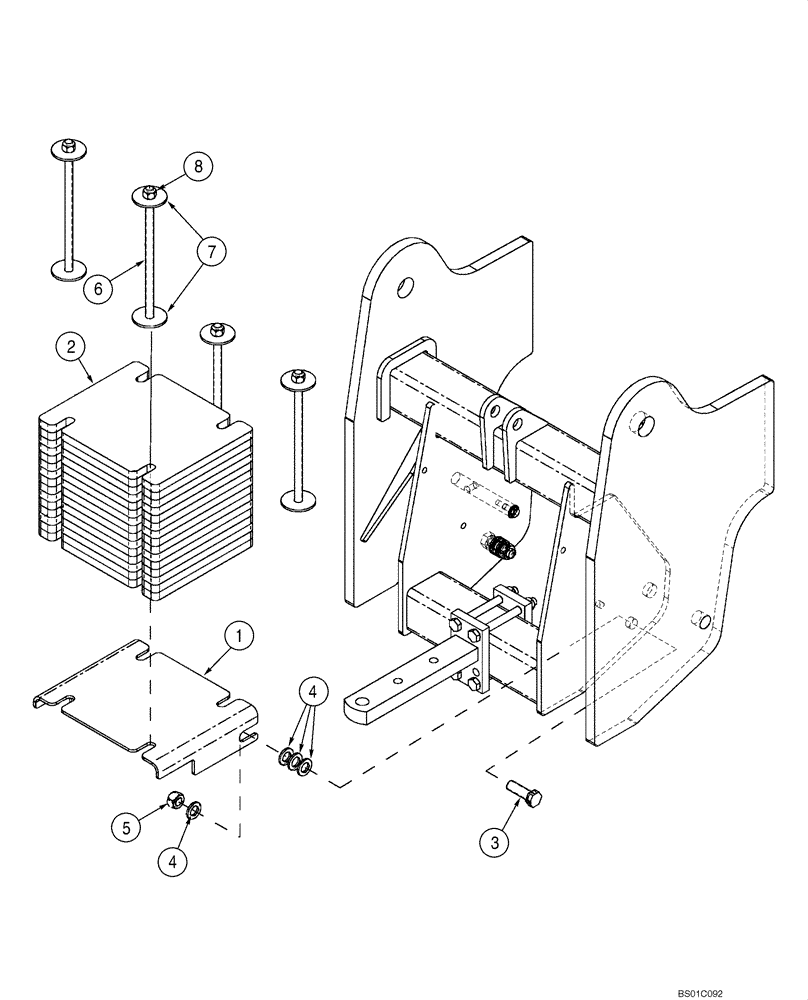

Запчасти Case 570MXT (09-17) - COUNTERWEIGHT, REAR (STACKABLE) (09) - CHASSIS/ATTACHMENTS

1

86982062

PLATE

1шт.

2

86982959

PLATE

13.6 kg (20 lbs); Stackable; Replaces 86982063

15шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

5

829-1420

NUT,M20, Cl 10

2шт.

6

627-16320

BOLT,Hex, M16 x 2 x 320mm, Cl 10.9, Full Thd

4шт.

7

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

8шт.

8

829-1416

NUT,M16, Cl 10

4шт.
