(08-04) - HYDRAULICS - CYLINDER, LOADER CLAM

Запчасти Case 570MXT (08-04) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS

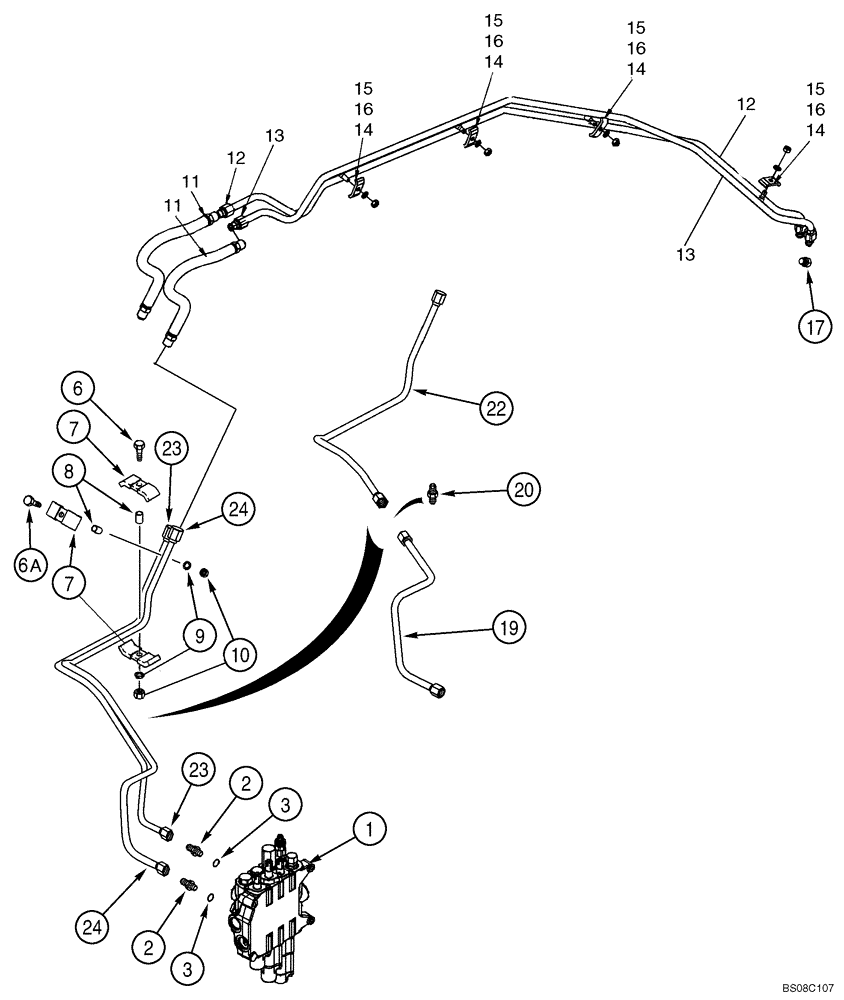

Схема запчастей Case 570MXT - (08-04) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS
13
8
12
14
24
6
13
14
15
19
15
23
16
3
2
24
11
16
2
14
3
20
1
6a
12
11
14
17
15
16
23
10
15
9
7
7
16
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84125560

HYDRAULIC VALVE

Loader Control Valve; Three Spool; See Figure 08-15, For Mounting, See Figure 09-01; Replaces 87351506

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

6a

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

D138055

CLAMP

3шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

138467A1

HOSE,12.7mm ID x 680mm L

680 mm (26-3/4 in)

2шт.

12

87716488

HYD TUBE

Upper Clam Port

1шт.

13

87716486

HYD TUBE

Lower Clam Port

1шт.

14

D138055

CLAMP

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

218-776

PLUG,7/8"-14, 37 Degree

Not Used On Models With Clam Bucket

2шт.

19

87313507

TUBE,0.625" OD

Lower Clam Port

1шт.

20

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

1шт.

22

360937A1

TUBE

Lower Clam Port

1шт.

23

87447352

TUBE,.625" OD

Upper Clam Port

1шт.

24

87447350

TUBE,11.66 mm ID x 15.88 mm OD

Lower Clam Port; For Service Order Ref 19, 20, 22; 87313507 Tube at Loader Valve
